Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), early version
Back
Report
Main Photo
Category:  Seat Posts
Name:  Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), early version
Brand:  Sakae/Ringyo (SR)
Primary Group:  Custom
Model:  CT-P5
Years:  1970's - 1980's
Country:  Japan
Weight:  280.75 grams (avg)
View Weight List
Added By: watsondm on 01/28/10
Updated By: Tombo on 05/13/16
Additional Photos - click for full size
Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade), Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade),
 Verify Component Photos
Markings"SR Laprade" near clamp on both sides;
"MAX.HT"; {diameter}, "JAPAN";
{date-code}; "SR"
MaterialLight Alloy
Shaft DesignFlutedSaddle Attachment StyleSingle bolt
Saddle Attachment Bolt Size(s)6mm Allen KeyOverall Length 220mm / 190mm
Max Height 130mmSetback 25mm
General Information

The often copied SR Laprade seatpost.

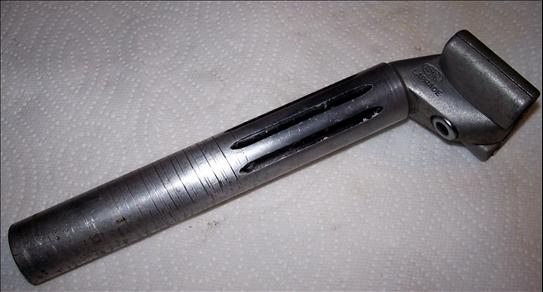

Adding a photo of what looks like an earlier model.  The clamp is a rough finish and the polished stem ends abruptly without the "V" shape depicted in the other photos.  Also, the fluted design appears to be a bit thinner and longer (maybe an illusion).  I date this to when I purchased it - 1977.
It was in use well before that - or so I was told.  Single bolt was considered state-of-the-art for easy saddle adjustment.

Added two pics of a customized/"tuned" (approx. 15g lighter) version with a - imo manually - reworked polished head & clamp. The SR Laprade logos were removed and the edges between post and head were reduced to achieve an almost fluent passage.

Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 2)BrandGroup
Sakae/Ringyo (SR) Custom-P5 (Sakae Laprade)Sakae/Ringyo (SR)Custom
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
CustomSakae/Ringyo (SR)View 7 Components
Brand Information(click to expand)
Date of Manufacturing / Production Code for SR seatposts (at least for the 80's):
The date of prodcution of SR (Laprade) seatposts is shown around the min.insert line as follows:
"letter"-"double digit number", e.g. F-81 oder L-81, while the letter should be the month and the number will be the year of production.
So F-81 seems to be June 1981 while L-81 would indicate December 1981.
(in-line with the code 1 examples on vintage-trek.com...)




User Comments
Sign-in Required
  Loading Comments


By pressing Verify below, you express verification that the photos shown are indeed of the component listed. Please do not verify if you are not sure that all photos are of the correct item. If you identify a photo that is NOT of the correct item, please use the Report feature to flag that photo.

Note: You can not verify photos that you have uploaded.
WeightSourceNotesAdded By
310 GramsActual flim
293 GramsActualfor 190mm / 27.2mm Tombo
270 GramsSpecfor 220mm SR Catalogue P-7 (1982) Tombo
250 GramsSpecfor 190mm -> SR Catalogue P-7 (1982) Tombo
