| Category: | Rear Derailleurs |

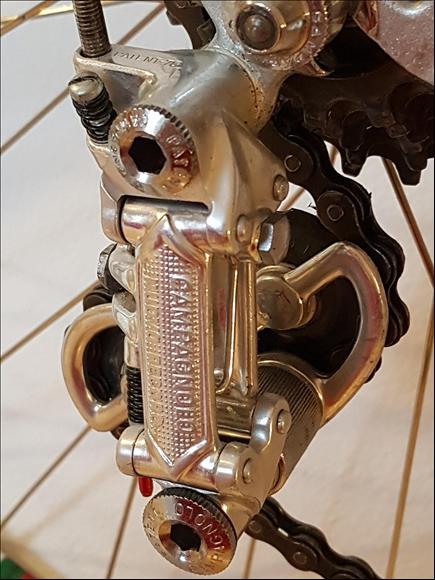

| Name: | Campagnolo 1020/A, Nuovo Record v3 (w/ spring, solid rivets) |
| Brand: | Campagnolo |
| Primary Group: | Nuovo Record |
| Model: | 1020/A |
| Years: | 1970 - 1981 |
| Country: | Italy |
| Weight: | 199.75 grams (avg)
View Weight List |
| Added By: | JFischer on 01/28/08 |
| Updated By: | MGTS on 03/12/20 |
Additional Photos - click for full size |
|
|
| Outer Plate Markings | Campagnolo Nuovo Record | Inner Plate Markings | Brev. Int Campagnolo |
| Material | Aluminum Alloy; Steel | Design Category | Inline parallelogram |
| Attachment Bolt Size | 6mm Allen Key | Cable Attachment Bolt Size | 8mm Wrench |
| Shifting Systems | Friction | Cable Adjuster | No |
| Cage Length | Short | Max Cog Size | 26 |
| Max Chain Wrap | 26t Confirmed | | |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 5) | Brand | Group |
| Campagnolo 1020/A, Nuovo Record v1 ("PATENT CAMPAGNOLO", w/ spring, solid rivets, | Campagnolo | Nuovo Record |
| Campagnolo 1020/A, Nuovo Record v2 ("PATENT" only, w/ spring, solid rivets) | Campagnolo | Nuovo Record |
| Campagnolo 1020/A, Nuovo Record v4 (w/ spring, hollow rivets) | Campagnolo | Nuovo Record |
| Campagnolo 1020/A, Nuovo Record v5 (w/hollow rivets, w/o spring fixing bolt) | Campagnolo | Nuovo Record |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Nuovo Record | Campagnolo | 1966 - 1987, Road Race | View 48 Components |
Details: Production ended in 1987.
|
