Campagnolo 1035, Record (high flange)
Back
Report

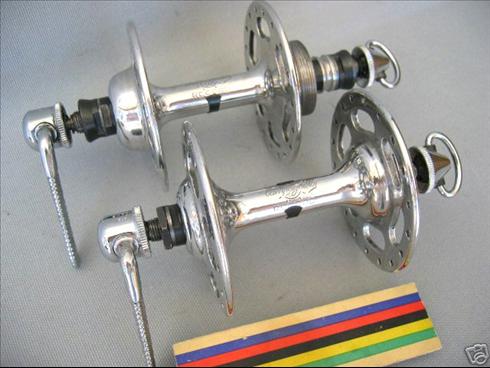

Main Photo
Category:  Hubs
Name:  Campagnolo 1035, Record (high flange)
Brand:  Campagnolo
Primary Group:  Nuovo Record
Model:  1035
Years:  1960 - 1980's
Country:  Italy
Weight:  578 grams
Added By: JFischer on 12/02/07
Updated By: peterbman on 05/22/17
Additional Photos - click for full size
Campagnolo 1035, Record (high flange)Campagnolo 1035, Record (high flange)Campagnolo 1035, Record (high flange)Campagnolo 1035, Record (high flange)
Gear Compatibility FreewheelFront Bearing Size/Count7/32" / 9x9
Rear Bearing Size/Count1/4" / 9x9Rear Spacing120mm; 126mm
Spoke Drilling24; 28; 32; 36; 40Flange SizeHigh Flange
Gear Threading/Pattern Body MarkingsCampagnolo globe logo Record
Axle MaterialSteelShell MaterialAluminum
General Information
There is a version of these hubs that have extra holes drilled between each spoke hole which was done by Schwinn specifically for the Schwinn Paramount.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 5)BrandGroup
Campagnolo 50th AnniversaryCampagnolo50th Anniversary
Campagnolo 1034, Record (Low Flange)CampagnoloNuovo Record
Campagnolo 4011, Super Record (High Flange, Ti Spindle)CampagnoloSuper Record
Campagnolo 4014, Super Record (Low Flange, Ti Spindle)CampagnoloSuper Record
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Nuovo RecordCampagnolo1966 - 1987, Road RaceView 48 Components
Details:  Production ended in 1987.
