| Category: | Headsets |
| Name: | Shimano HP-6400, 600 Ultegra |
| Brand: | Shimano |
| Primary Group: | 600 Ultegra |
| Model: | HP-6400 |
| Years: | 1988 - 1994 |
| Country: | Japan |
| Weight: | 99 grams (Actual) |
| Added By: | JFischer on 12/02/09 |
| Updated By: | JFischer on 09/01/13 |

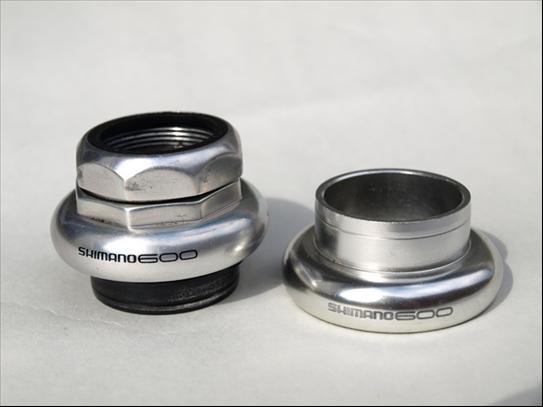

Additional Photos - click for full size |
|
|
| Body Material | Aluminum | Upper Bearing Size | 25 - 5/32" |
| Lower Bearing Size | 25 - 5/32" | Crown Race Size | ISO (26.4mm) |
| Upper Cup Markings | Shimano 600 | Lower Cup Markings | Shimano 600 |
Available Threading  | English/ISO/Italian (25.4mm x 24TPI) | Stack Height | 33.5mm |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 2) | Brand | Group |
| Shimano HP-6500, 600 Ultegra (sealed bearings) | Shimano | 600 Ultegra |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| 600 Ultegra, 6400 series | Shimano | 1988 - 1998, Road Race | View 32 Components |
| Details: Shimano added the word 'Ultegra' to their 600 group set in 1988 with the introduction of the 6400 series groupset. Also often recognized by the tri-color stripe on many of the parts.
The Ultegra group was developed to provide a high-performance racing type bicycle for amateur racers and performance oriented sports cyclists. Ultegra features polished bearing races, high strength steels, a striking modern colour treatment and compact high-tech design theme. This approach creates a new upgraded image for a fashionable high quality racing-type bicycle aimed at the performance cycling enthusiast. (1991 Dealer Manual) |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
