| Category: | Front Derailleurs |

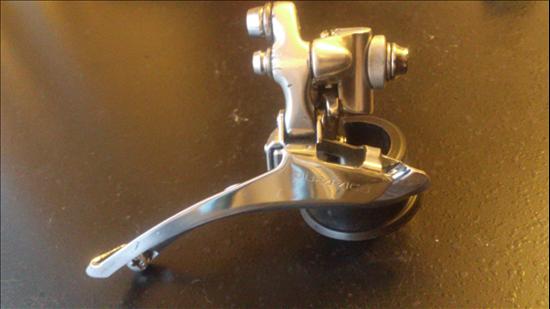

| Name: | Shimano FD-7410, Dura-Ace 7400 (braze on) |
| Brand: | Shimano |
| Primary Group: | Dura-Ace 7410 |
| Model: | FD-7410 |
| Years: | 1994 - 1996 |
| Country: | Japan |
| Added By: | Walkman-man on 02/08/17 |
| Updated By: | Walkman-man on 02/08/17 |
Additional Photos - click for full size |
|
|
# Rings Designed For  | Double | Outer Plate Markings | Dura-Ace |
| Inner Plate Markings | FD-7410 Shimano Japan | Clamp Markings | None |
| Inner Clamp Markings | | Design Category | Parallelogram |
| Pivot Arm Markings | None | Plate Material | Aluminum |
| Clamp Style | 28.6mm Clamp; Braze-on Tab | Cable Attachment Bolt | 5mm Allen Key |
| CableStop | No | Clamp Bolt Type | 5mm Allen Key |
| Max Ring Difference | 15T | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 2) | Brand | Group |
| Shimano FD-7410, Dura-Ace 7400 | Shimano | Dura-Ace 7410 |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Dura-Ace 7410 | Shimano | 1994 - 1996, Road Race | View 15 Components |
| Details: Last of the Dura-Ace 7400 series, the 7410 was enough of a departure from the original 7400 series that many sources list it as a seperate group. |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
