| Category: | Cranksets |

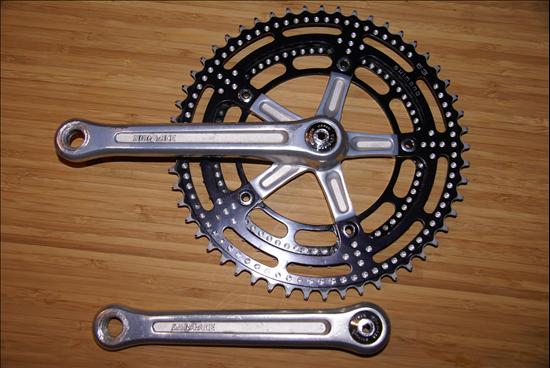

| Name: | Shimano GA-200, Dura-Ace (Black, drilled rings) |
| Brand: | Shimano |
| Primary Group: | Dura-Ace |
| Model: | GA-200 |
| Years: | Mid 1970's - Late 1970's |
| Country: | Japan |
| Added By: | andypop1 on 02/10/11 |
| Updated By: | andypop1 on 02/10/11 |
Additional Photos - click for full size |
|
|
| Chainring Count | Double | BCD  | 130mm |
| BB Style | Square Taper (ISO) | Pedal Threads | 14mm x 1.25mm (French);
9/16" x 20 (English) |
| BB Length | 112mm | Flutes | Crank Arm; Spider |
| Lengths | 165; 167.5; 170; 172.5; 175 | Arm/Spider Material | Aluminum Alloy |
| Front Markings | Dura-Ace inside flute on crank arm | Back Markings | |
| Extractor Threading | 22x1mm (Standard) | | |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 3) | Brand | Group |
| Shimano GA-200, Dura-Ace (Black) | Shimano | Dura-Ace |
| Shimano GA-200, Dura-Ace First Gen | Shimano | Dura-Ace |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Dura-Ace, First Generation | Shimano | 1973 - 1976, Road Race | View 34 Components |
| Details: The introduction of Dura-Ace in the mid 1970's, along with the indroduction of the Shimano 600 group were Shimano's first attempts at a professional quality road racing component group. The first Generation Dura-Ace was updated and renamed the 7100 series by around 1977/78. |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
