Shimano BB-110, Tourney
Back
Report

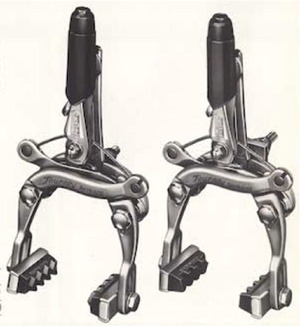

Main Photo
Category:  Brakes
Name:  Shimano BB-110, Tourney
Brand:  Shimano
Primary Group:  Tourney
Model:  BB-110
Years:  1975 - ?
Country:  Japan
Weight:  525 grams
Added By: JFischer on 12/12/07
Updated By: JFischer on 01/21/09
Additional Photos - click for full size
Shimano BB-110, TourneyShimano BB-110, Tourney
Design Category Center PullCable Adjuster
Quick Release YesAttachment Bolt TypeExterior Nut
Cable Attachment BoltWrenchFront of Arm MarkingsTourney Shimano
Back of Arm MarkingsReach CategoryLong Reach; Standard Reach
Min Reach47mmMax Reach75mm
General Information

There are two version of thise brake:

CC-65A with a reach of 47-65mm
CC-75A with a reach of 57-75mm

These brakes themselves are a variation of the BB-100 which included Shimano's new AUTO ADJUST mechanism which was supposed to automatically adjust for break pad wear and cable stretch.  See the 1975 Shimano catalog for full details.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 2)BrandGroup
Shimano BB-100, TourneyShimanoTourney
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
TourneyShimano1972 - , RecreationView 10 Components
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
