Ambrosio 19 Extra Super Elite
Back
Report

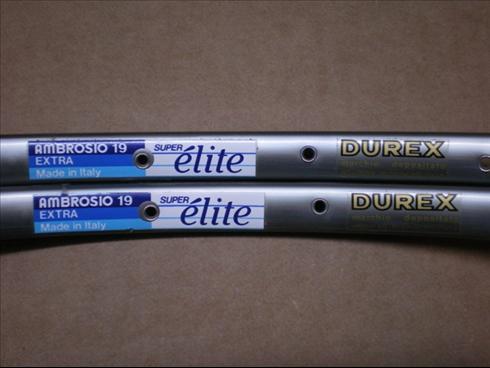

Main Photo
Category:  Rims
Name:  Ambrosio 19 Extra Super Elite
Brand:  Ambrosio
Model:  19 Extra Super Elite
Years:  N/A
Country:  Italy
Weight:  496.3 grams (avg)
View Weight List
Added By: simplex56 on 09/09/08
Updated By: Wolfram Verktyg on 08/14/18
Additional Photos - click for full size
Ambrosio 19 Extra Super EliteAmbrosio 19 Extra Super EliteAmbrosio 19 Extra Super EliteAmbrosio 19 Extra Super Elite
Rim Type ClincherMaterialAluminum
Rim Size700c (622 mm)Spoke Drillings28; 32; 36
Label MarkingsAmbrosio 19 Extra Super elite DurexValve DrillingPresta
Rim Height (mm)13.3Rim Outer Width (mm)20.1
EyeletsDoubleSeam Joint Pinned
FinishDark Gray Hard Anodized; Gray
Wheel Lacing Data
Rim Size 700cERD 613.1 mm
Rim Size 700cERD 613.7 mm
Rim Size 700cERD 620 mm
General Information
Rim sticker says "DUREX marchio depositato allumag monocellulare".
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & Charts
Brand Information(click to expand)
The Ambrosio trademark is also being used by a UK company that produces components and accessories using the 1980's logo.

Doug Charles: "here is what I have been able to glean on the Ambrosio/3TTT relationship, all from third party sources. Ambrosio founded in the early 1900's in Turin initially making steel bars and stems, until the 1930's it was a large concern in the bike biz, but slowly started to fade. At some point, alloy bars, stems and rims are added to the mix. In the early 1960's, Piero Marzorati from Milan family buys Ambrosio to add it to their existing company which makes among other things, steel rims. Initially, bars and stems were made until the sons, Sergio and Maurizio take over in the late 1960's and push more emphasis on the rim side of the business. In the 1970's, rims are the biggest part of what they do. In 1961 (when Marzorati shows up?), long term employee, Mario Dedioniggi leaves Ambrosio and founds 'Turin Tube Technology', which is soon to become 'Techo Tubo Torino'. He also starts with steel bars and stems ... He soon converts to aluminum with Ergal coming in 1975 for the Superleggero bar. In 1985, Dedioniggi leaves and sell the brand to Antonio Colombo et al. Colombo founds a new company, so as not to compete directly with Cinelli with the plans to call it '3TTT S.p.A." but the clerk forgets the other two 'T's' and it becomes '3T' ...So, they appear to be parallel companies of the same parent in the 1960's-70's with ties, but not the same company and to this day, have different addresses."

User Comments
Sign-in Required
  Loading Comments


By pressing Verify below, you express verification that the photos shown are indeed of the component listed. Please do not verify if you are not sure that all photos are of the correct item. If you identify a photo that is NOT of the correct item, please use the Report feature to flag that photo.

Note: You can not verify photos that you have uploaded.
WeightSourceNotesAdded By
523 GramsUnknown JFischer
495 GramsActual36h, 700c danitool
470.9 GramsActual36h, 700c, some brake wear blacksand.aotearoa
