Campagnolo Veloce/Stratos
Back
Report
Main Photo
Category:  Bottom Brackets
Name:  Campagnolo Veloce/Stratos
Brand:  Campagnolo
Model:  BB-01VL
Years:  1993 - 1994
Country:  Italy
Added By: EhGiOeS on 01/01/13
Updated By: peterbman on 02/28/14
Additional Photos - click for full size
Campagnolo Veloce/StratosCampagnolo Veloce/Stratos
 Verify Component Photos
Bearing Size/Count per sideCartridgeSpindle Markings
Fixed Cup MarkingsAdjustable Cup Markings
Spindle StyleSquare Taper (Campagnolo)Axle MaterialSteel
Available ThreadingsEnglish/ISO: 1.370 x 24;
Italian: 36mm x 24		Length(s)111mm
Tools NeededCampagnolo BB Tool
General Information

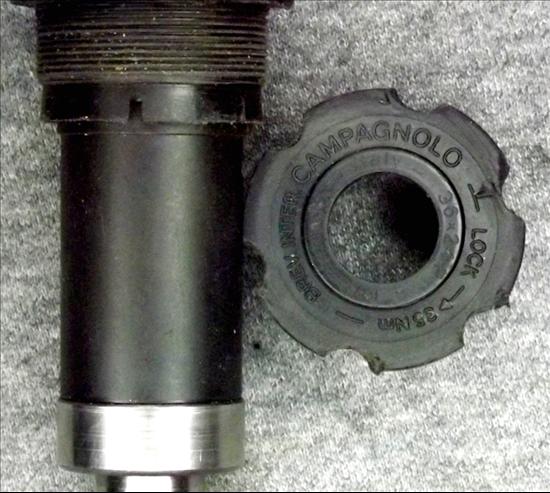

Black plastic cups black chrome spindle . Came out of a Colnago road bike thought to be early "80's". Could be mountain bike ?

This cartridge BB was OEM when the first Veloce gruppo was introduced in 1993, the cups were described as being made of "techno-plastic" and the spindle had a black oxide coating. In 1994 the Veloce BB was changed to the "11VL-Cart" with alloy cups and the "techno-plastic" BB was moved down to the new Stratos gruppo. In 1995 the short lived Stratos gruppo along with the "techno-plastic" BB cups were replaced with the Mirage gruppo (and a BB  with alloy cups); the "techno-plastic" BB cups were fortunately never seen again.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
