Ambrosio Balance v1
Back
Report
Main Photo
Category:  Rims
Name:  Ambrosio Balance v1
Brand:  Ambrosio
Model:  Balance
Years:  1980's - ?
Country:  Italy
Weight:  1,109 grams (avg)
View Weight List
Added By: JFischer on 10/06/09
Updated By: Tombo on 04/29/18
Additional Photos - click for full size
Ambrosio Balance v1Ambrosio Balance v1Ambrosio Balance v1Ambrosio Balance v1Ambrosio Balance v1Ambrosio Balance v1Ambrosio Balance v1Ambrosio Balance v1
 Verify Component Photos
Rim Type ClincherMaterialAlu/Alloy
Rim Size700c (622 mm)Spoke Drillings32; 36

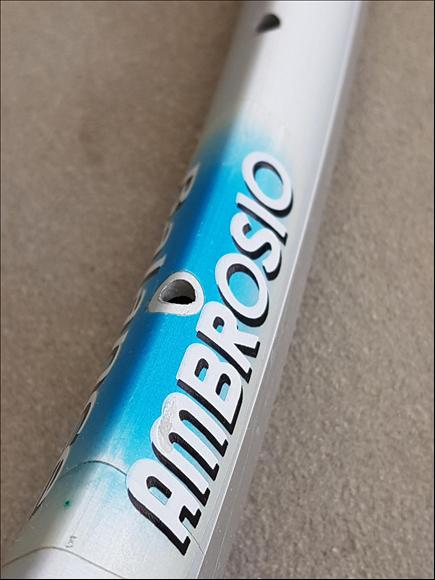

Label Markings"AMBROSIO Balance" "ALLOY RIM" "ETRTO 622-13 MADE IN ITALY"Valve DrillingPresta
Rim Height (mm)22mm (actual ~21,6)Rim Outer Width (mm)20mm
EyeletsNoneSeam Joint Sleeve
FinishBlack; Blue Andonized;
Red Anodized; Silver matt

Wheel Lacing Data
Rim Size 650C / 26"ERD 543mm
Rim Size 700C / 28"ERD 594mm
General Information
Machined sidewalls.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & Charts
Brand Information(click to expand)
The Ambrosio trademark is also being used by a UK company that produces components and accessories using the 1980's logo.

Doug Charles: "here is what I have been able to glean on the Ambrosio/3TTT relationship, all from third party sources. Ambrosio founded in the early 1900's in Turin initially making steel bars and stems, until the 1930's it was a large concern in the bike biz, but slowly started to fade. At some point, alloy bars, stems and rims are added to the mix. In the early 1960's, Piero Marzorati from Milan family buys Ambrosio to add it to their existing company which makes among other things, steel rims. Initially, bars and stems were made until the sons, Sergio and Maurizio take over in the late 1960's and push more emphasis on the rim side of the business. In the 1970's, rims are the biggest part of what they do. In 1961 (when Marzorati shows up?), long term employee, Mario Dedioniggi leaves Ambrosio and founds 'Turin Tube Technology', which is soon to become 'Techo Tubo Torino'. He also starts with steel bars and stems ... He soon converts to aluminum with Ergal coming in 1975 for the Superleggero bar. In 1985, Dedioniggi leaves and sell the brand to Antonio Colombo et al. Colombo founds a new company, so as not to compete directly with Cinelli with the plans to call it '3TTT S.p.A." but the clerk forgets the other two 'T's' and it becomes '3T' ...So, they appear to be parallel companies of the same parent in the 1960's-70's with ties, but not the same company and to this day, have different addresses."

User Comments
Sign-in Required
  Loading Comments


By pressing Verify below, you express verification that the photos shown are indeed of the component listed. Please do not verify if you are not sure that all photos are of the correct item. If you identify a photo that is NOT of the correct item, please use the Report feature to flag that photo.

Note: You can not verify photos that you have uploaded.
WeightSourceNotesAdded By
1,130 GramsUnknownPer Pair JFischer
1,088 GramsActualpair (NOS) Tombo
Rigida
