| Category: | Bottom Brackets |
| Name: | Campagnolo 3331, (Nuovo) Gran Sport (Thin Cup) |
| Brand: | Campagnolo |
| Primary Group: | (Nuovo) Gran Sport |
| Model: | 3331 |
| Years: | Mid 1970's - Mid 1980's |
| Country: | Italy |
| Weight: | 304 grams (Actual),
italian 70-SS-120 |
| Added By: | JFischer on 08/31/09 |
| Updated By: | Tombo on 05/05/16 |

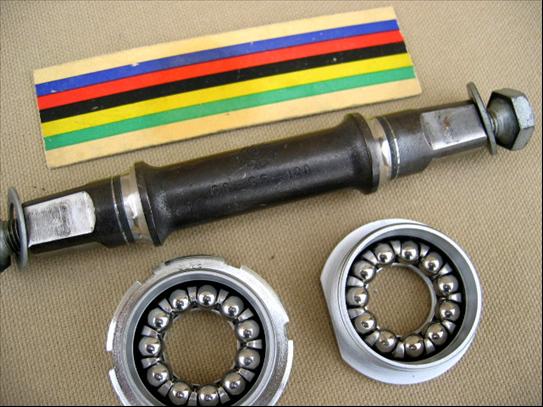

Additional Photos - click for full size |
|
 Verify Component Photos |
|
| Bearing Size/Count per side | 1/4" / 11x11 | Spindle Markings | 68-SS-120 / 70-SS-120 |
| Fixed Cup Markings | [threading] Made in Italy Campagnolo | Adjustable Cup Markings | [threading] Made in Italy Campagnolo |
| Spindle Style | Square Taper (Campagnolo) | Axle Material | Steel |
| Available Threadings | English/ISO: 1.370 x 24;
French: 35mm x 1mm;
Italian: 36mm x 24 | Length(s) | 112mm (68-SS-120) / 113mm (70-SS-120) |
| Tools Needed | Spanner, Locknut Wrench and Fixed Cup Wrench | | |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| (Nuovo) Gran Sport (1974-198X) | Campagnolo | 1974 - , Sport & Recreation | View 20 Components |
Details: The reintroduction of the "Gran Sport" name in the mid 70's found the
group situated below the "Record" groups in the Campagnolo line up.
This
group was eventually phased out in the early to mid 80's with the
introduction of the Victory and Triomphe groups. According to the
comments in the '85 Campa catalogue e.g. the G.S. crankset (#0304),
the pedals (#3700) and the BB (#3331) - or at least the G.S. axle
(#3332) - were "no more available and replaced by the Victory range..." |
