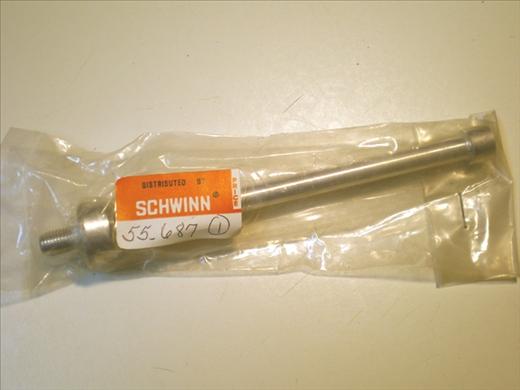

Main Photo
Category:  Small Parts & Accessories
Name:  Schwinn Alloy Stem Bolt
Brand:  Schwinn
Model:  55-687
Years:  N/A
Country:  United States
Weight:  27 grams
Added By: simplex56 on 01/31/09
Updated By: simplex56 on 01/31/09
Additional Photos - click for full size
Schwinn Alloy Stem BoltSchwinn Alloy Stem BoltSchwinn Alloy Stem Bolt
 Verify Component Photos
Part Type Other AccessoriesIdentifying Markings None
MaterialAluminum AlloyLocation
General Information

Overall length 144mm.  Shank dia = 8mm.  Head dia = 12mm.  Uses 6mm hex key.  Wedge nut dia = 20mm (max).

Total Weight = 27 grams. (vs. 61g for steel. Save 34g!)

NOTE: Pictures 2 & 3 show a typical steel bolt set above, and the aluminum beneath.  The steel bolt set, taken from a Cinelli stem, has a smaller shank dia (7mm), with coarser thread, and a slightly smaller bolt head diameter (11.75mm).  These minor differences do not prevent the alloy bolt set fitting just fine in the Cinelli stem.  To avoid damage to the alloy bolt, some folks used to draw the nut home using a steel bolt, and then replace it with the alloy bolt.  Obviously, this could not be done here, as the alloy set uses a larger diameter shank and finer thread to help withstand the stress of tightening.  Still, you'd want to lightly grease the parts and be careful not to over-torque the alloy bolt.

Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsExternal Resources
Brand Information(click to expand)
Schwinns were made in Chicago, IL  USA up until the 1970's. Sometime in the 1970's, the Schwinn Chicago factory was organized by the United Auto Workers union, who felt that bicycle factory workers should be paid on the same scale as automotive workers. Unfortunately, the realities of the marketplace didn't agree, and Schwinn closed the factory, transferring most production to Japan (Panasonic) and Taiwan (Giant). Schwinn also built a factory in Greenville, Mississippi, but it didn't last, and even bought a factory in Hungary, but the deal fell through, and Schwinn never imported any Hungarian bikes to the U.S.

Pacific Cycle, founded in 1983, designs and markets bicycles and scooters under several brands, including Schwinn, Mongoose, DYNO, InSTEP, Roadmaster, Pacific Outdoors, and others. It's also a top maker of bicycle helmets in the US. Pacific Cycle, which outsources its manufacturing to China and Taiwan, got its operations in gear by buying Brunswick Bicycles, Schwinn/GT Corp., InSTEP, and PTI Sports, all within a few years. Dorel Industries owns Pacific Cycle alongside its popular Cannondale brand.
