ALES
Back
Report
Main Photo
Category:  Cranksets
Name:  ALES
Brand:  Ales
Model:
Years:  Late 1970's - Early 1980's
Country:  Italy
Weight:  441.33 grams (avg)
View Weight List
Added By: LeifMichelsen on 01/15/15
Updated By: LeifMichelsen on 07/15/15
Additional Photos - click for full size
ALESALESALESALESALESALES
 Verify Component Photos
Chainring CountDoubleBCD 144mm
BB StyleSquare Taper (ISO)Pedal Threads9/16" x 20f (Italian)
BB Length aproximatly 114mm as Campagnolo SR from that timeFlutes Crank Arm;
Crank Arm (back side); Spider
Lengths 170Arm/Spider MaterialAluminum Alloy
Front Markingsdrilled spider flutes, round marking next to the crank bolt fitting (for logo plate)Back Markingsnone
Extractor Threading 22x1mm (Standard)
General Information
These are the lightest cranks of that time I ever had in hands. Came with rather heavy and ugly drilled chain rings that I think were not originally screwed to that crankset. Was sold to me as an F.T. Bologna. In the meantime I found two other cranksets exactly the same marked as ALES (Applizioni Leghe Speciali). Those also look very similar to Gian Robert Competition.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsGear Calculator
User Comments
Sign-in Required
  Loading Comments


By pressing Verify below, you express verification that the photos shown are indeed of the component listed. Please do not verify if you are not sure that all photos are of the correct item. If you identify a photo that is NOT of the correct item, please use the Report feature to flag that photo.

Note: You can not verify photos that you have uploaded.
WeightSourceNotesAdded By
366 GramsActualwithout chainrings, bolts or dust caps LeifMichelsen

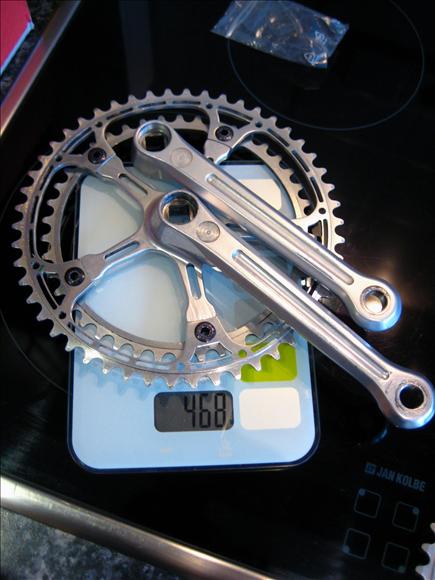

468 GramsActual/w Campagnolo Super Record chainrings 52/42 and Cobra Dural bolts LeifMichelsen
490 GramsActual/w original chainrings 52/42 and original bolts LeifMichelsen
