| Category: | Bottom Brackets |
| Name: | SunTour BB-GP00-J, GPX |
| Brand: | SunTour |
| Primary Group: | GPX |
| Model: | BB-GP00-J |
| Years: | 1989 - 1991 |
| Country: | Japan |
| Weight: | 321 grams |
| Added By: | JFischer on 12/31/07 |
| Updated By: | JFischer on 06/09/09 |

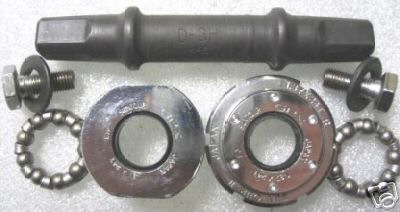

Additional Photos - click for full size |
|
|
| Bearing Size/Count per side | 1/4" / 9x9 | Spindle Markings | |
| Fixed Cup Markings | SunTour GPX Japan [threading] | Adjustable Cup Markings | SunTour GPX Japan [threading] |
| Spindle Style | | Axle Material | Steel |
| Available Threadings | English/ISO: 1.370 x 24;
French: 35mm x 1mm;
Italian: 36mm x 24 | Length(s) | |
| Tools Needed | Spanner, Locknut Wrench and Fixed Cup Wrench | | |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| GPX | SunTour | 1989 - 1991, Road Race | View 14 Components |
Details: 1989 ranking was Superbe Pro, Sprint 9000, GPX, Ole, Edge 4050, Blaze 3040.
1991 ranking was Superbe Pro, Sprint , GPX, Radius
1992 ranking was Superbe Pro, SL , GPX, Radius
|
SunTour (Maeda)
SunTour derailleurs have a two-letter date code. On rear derailleurs the code is stamped on the back side of the inner parallel arm. On front derailleurs it is stamped on the back side of the inner cage.
The first letter represents the year. Larry Osborn and I believe O (Oh) is 1972, V is 1979 and A is 1984. As with Shimano, the second letter is the month code, where A is January and L is December.
SunTour Year Code
|
N |
O |
P |
Q |
R |
S |
T |
U |
V |
W |
X |
Y |
Z |
|
1971 |
1972 |
1973 |
1974 |
1975 |
1976 |
1977 |
1978 |
1979 |
1980 |
1981 |
1982 |
1983 |
| |
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
|
|
|
|
1984 |
1985 |
1986 |
1987 |
1988 |
1989 |
1990 |
1991 |
1992 |
|
|
|
|
SunTour Month Code
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
|
Jan |
Feb |
Mar |
Apr |
May |
Jun |
Jul |
Aug |
Sep |
Oct |
Nov |
Dec |
The earliest Suntour derailleur I have found with a code is marked OF. A rear derailleur marked OD (corresponding to April of 72) was reported by Leighton Walter. I have a bike that dates from between 1970 to 1972 that has the original SunTour derailleurs. These derailleurs do not have date codes on them, so I believe the coding started sometime between 1970 and April of 1972.
(source: vintage-trek.com)
