| Category: | Front Derailleurs |
| Name: | Campagnolo Euclid (Graphite Finish) |
| Brand: | Campagnolo |
| Primary Group: | Euclid |
| Model: | |
| Years: | 1990 - 1991 |
| Country: | Italy |
| Weight: | 115 grams (Actual) |
| Added By: | JFischer on 12/24/10 |
| Updated By: | JFischer on 12/24/10 |

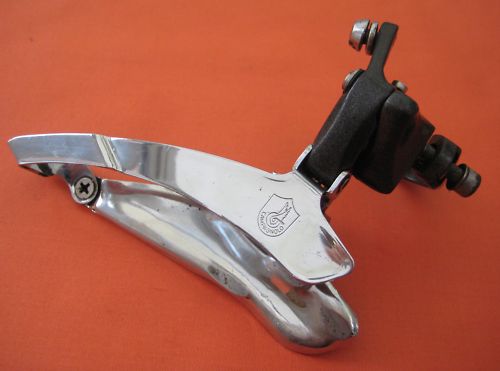

Additional Photos - click for full size |
|
 Verify Component Photos |
|
# Rings Designed For  | Triple | Outer Plate Markings | Campagnolo shield |
| Inner Plate Markings | Brev. Inter Made in Italy | Clamp Markings | None |
| Inner Clamp Markings | | Design Category | Parallelogram |
| Pivot Arm Markings | None | Plate Material | Steel |
| Clamp Style | 28.6mm Clamp | Cable Attachment Bolt | 5mm Allen Key |
| CableStop | No | Clamp Bolt Type | 5mm Allen Key |
| Max Ring Difference | 26T | | |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 3) | Brand | Group |
| Campagnolo M022, Euclid | Campagnolo | Euclid |
| Campagnolo M023, Euclid | Campagnolo | Euclid |
