Campagnolo Corsa Record (Pantographed)
Back
Report
Main Photo
Category:  Brake Levers
Name:  Campagnolo Corsa Record (Pantographed)
Brand:  Campagnolo
Primary Group:  C-Record
Model:
Years:  Mid 1980's - ?
Country:  Italy
Added By: steel-is-real on 11/04/10
Updated By: steel-is-real on 11/04/10
Additional Photos - click for full size
Campagnolo Corsa Record (Pantographed)Campagnolo Corsa Record (Pantographed)Campagnolo Corsa Record (Pantographed)Campagnolo Corsa Record (Pantographed)Campagnolo Corsa Record (Pantographed)
 Verify Component Photos
StyleAero; Non-AeroReturn Spring No
Quick Release YesCable AdjusterNo
Lever Material AluminumLever Markings-/+ (for Power Grade adjust)
Body Material AluminumHood/Body MarkingsCampagnolo Shield
Attachment Bolt AccessUnder lever body
General Information
A variation of Campagnolo C-Record (Power Grade) brake lever, pantographing was popular on top end bikes during the 70's and 80's.

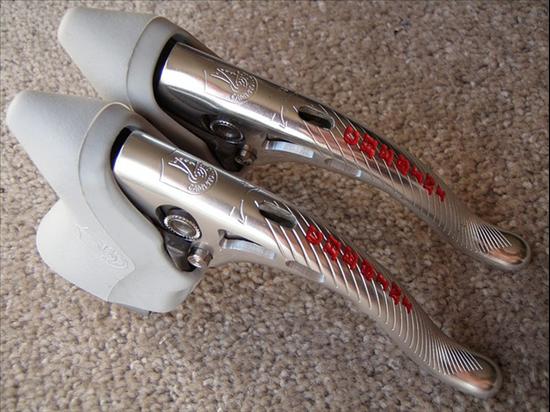

This particular set is "Chesini" pantographed - "Chesini" engraving down the lever blade and paint filled with red paint. This set also features additional machining out of the lever blades have been machined out on both sides of the lever.

Campagnolo's exclusive 'Power Grade' system with the Delta brake set, offers the possibility of micrometric variation of the ratio between the force applied to the lever and the brake force response.


Top:- Standard Campagnolo C-Record Power-Grade Brake Lever - 47 grams.

Bottom:- Campagnolo C-Record "Chesini" Power-Grade Brake Lever - 44 grams.
The weight reduction is due to the brake lever blades being machined out on both sides of the lever.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 3)BrandGroup
Campagnolo Corsa RecordCampagnolo
Campagnolo Corsa Record (with 'Power Grade')CampagnoloC-Record
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Corsa RecordCampagnolo1985 - 1990, Road RaceView 30 Components
