Main Photo
Category:  Hubs
Name:  Sturmey Archer Fixed/Fixed
Brand:  Sturmey Archer
Model:  Fixed/Fixed
Years:  Early 1950's - Late 1950's
Country:  England
Added By: JohnDThompson on 12/29/09
Updated By: JohnDThompson on 12/29/09
Additional Photos - click for full size
Sturmey Archer Fixed/FixedSturmey Archer Fixed/Fixed
 Verify Component Photos
Gear Compatibility Fixed GearFront Bearing Size/Count
Rear Bearing Size/Count1/4" / 9x9Rear Spacing110mm
Spoke Drilling36Flange SizeLow Flange
Gear Threading/Pattern English/ISO: 1.375 x 24 TPIBody MarkingsMADE IN ENGLAND
Axle MaterialSteelShell MaterialSteel
General Information

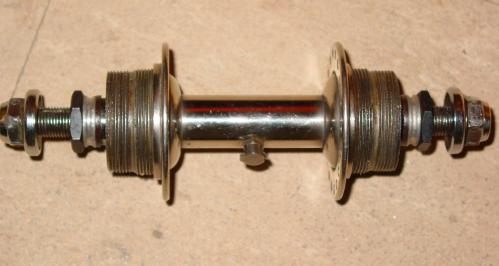

Nickel plated steel shell with spring-loaded oiler cap. Bearing surfaces are nicely ground and polished, and the axle has one cone permanently affixed (left side in picture). Fixed/fixed cog & lockring threading on both sides.

Manufacturer is not indicated on the hub, but it appears similar to other 1950s era Sturmey-Archer hubs.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Brand Information(click to expand)
 Best known for the internal geared (planetary gearing) hub, Sturmey Archer is another one of the most recognized brands in cycling.  The company has been bought and sold several times since it's origins, and at some time was owned by the same parent company as both Brooks and Raleigh.  The company is still in business (well, the name is still in use anyways), and there are still internal geared hubs produced today with the Sturmey Archer name.
