Campagnolo Croce d' Aune (long version)  (Report Pending)
Back
Report

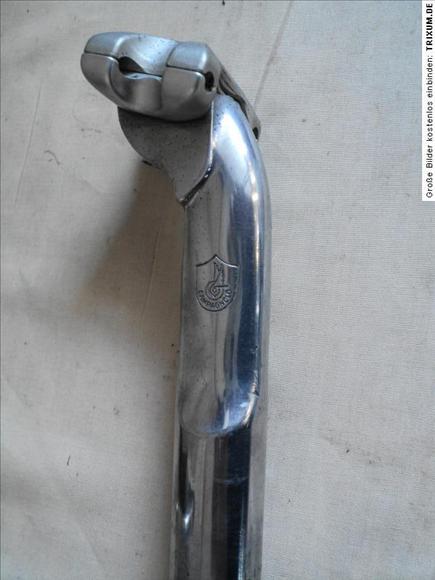

Main Photo
Category:  Seat Posts
Name:  Campagnolo Croce d' Aune (long version)
Brand:  Campagnolo
Primary Group:  Croce d' Aune
Model:  Aero; long version
Years:  Late 1980's - Early 1990's
Country:  Italy
Weight:  264 grams (Actual),
for 205mm / 27.2mm
Added By: JFischer on 11/09/11
Updated By: Tombo on 05/11/16
Additional Photos - click for full size
Campagnolo Croce d' Aune (long version)Campagnolo Croce d' Aune (long version)Campagnolo Croce d' Aune (long version)Campagnolo Croce d' Aune (long version)Campagnolo Croce d' Aune (long version)Campagnolo Croce d' Aune (long version)Campagnolo Croce d' Aune (long version)Campagnolo Croce d' Aune (long version)
 Verify Component Photos
MarkingsCampagnolo shield logoMaterialAluminum
Shaft DesignAeroSaddle Attachment StyleSingle bolt
Saddle Attachment Bolt Size(s)6mm Allen KeyOverall Length 205mm
Max Height 150mmSetback 20mm
General Information
According to the Campa Croce d'Aune catalogue from 1988 there had been several diameter (from 26.0mm in 0.2mm steps to 27.4mm) and two lengths (long version described here) available.
The seatposts - described as seat "pins" are made of "die-cast silicon aluminum".
(This catalogue mentioned - as a subgroup resp. an alternative component - another(?) seat post bundle with the model number COR2-S and a length of 130mm, including an 8mm fixing bolt.)

Although this seatpost is very similar to a Chorus and/or other Campy posts (other than Record) of the that time, the small wings "hiding" the bolt are different.
Reported By:c-record
Report Date:8/16/2017
Report Reason:Incorrect Content, this is an 1989-90 Athena seatpost, not Croce D' Aune

Quality:Rarity:


Outstanding Report Submitted
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Croce d' AuneCampagnolo1987 - 1991, Road RaceView 14 Components
