| Category: | Cranksets |
| Name: | Campagnolo 0304, (Nuovo) Gran Sport (144 BCD) |
| Brand: | Campagnolo |
| Primary Group: | (Nuovo) Gran Sport |
| Model: | 0304 |
| Years: | 1980's |
| Country: | Italy |
| Added By: | JFischer on 03/08/11 |
| Updated By: | Tombo on 05/04/16 |

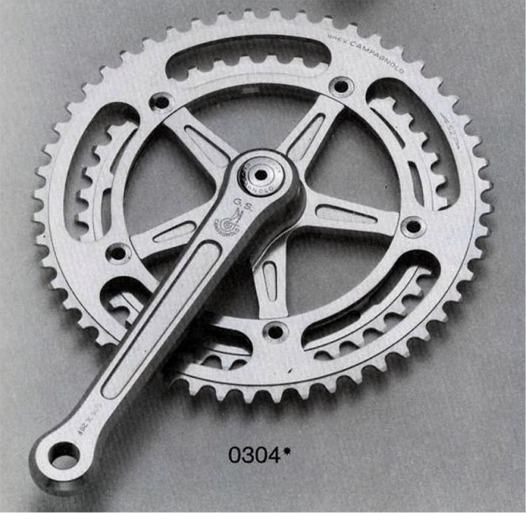

Additional Photos - click for full size |
|
|
| Chainring Count | Double | BCD  | 144mm |
| BB Style | Square Taper (ISO) | Pedal Threads | 9/16" x 20 (English) |
| BB Length | 120mm (on 68mm BB shell) | Flutes | Crank Arm; Spider |
| Lengths | 170 | Arm/Spider Material | Aluminum Alloy |
| Front Markings | G.S. Winged wheel logo. Wide crank arm flute | Back Markings | |
| Extractor Threading | 22x1mm (Standard) | | |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| (Nuovo) Gran Sport (1974-198X) | Campagnolo | 1974 - , Sport & Recreation | View 20 Components |
Details: The reintroduction of the "Gran Sport" name in the mid 70's found the
group situated below the "Record" groups in the Campagnolo line up.
This
group was eventually phased out in the early to mid 80's with the
introduction of the Victory and Triomphe groups. According to the
comments in the '85 Campa catalogue e.g. the G.S. crankset (#0304),
the pedals (#3700) and the BB (#3331) - or at least the G.S. axle
(#3332) - were "no more available and replaced by the Victory range..." |
