MAFAC LS
Back
Report

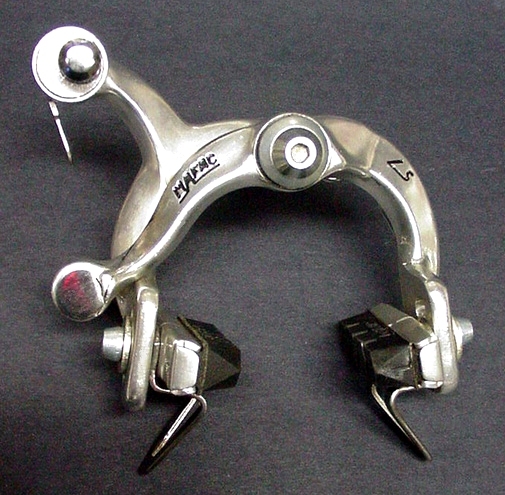

Main Photo
Category:  Brakes
Name:  MAFAC LS
Brand:  MAFAC
Model:  LS
Years:  Late 1970's - Mid 1980's
Country:  France
Added By: CV-6 on 08/04/07
Updated By: peterbman on 10/31/14
Additional Photos - click for full size
MAFAC LSMAFAC LSMAFAC LSMAFAC LSMAFAC LSMAFAC LS
 Verify Component Photos
Design Category Single PivotCable Adjuster
Quick Release Yes, at cable stopAttachment Bolt TypeExterior Nut
Cable Attachment BoltWrenchFront of Arm MarkingsMafac LS
Back of Arm MarkingsReach CategoryLong Reach; Standard Reach
Min Reach43mmMax Reach57mm
General Information
Uses an allen head bolt.  A cursory examination would lead one to think they are recessed mount, but they are not.  Wheel guides are separate from the calipers.  Calipers are toed in.  These can also be found relabeled Spidel.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Brand Information(click to expand)

MAFAC, or Manufacture Auvergnoise de Freins et Accessoires pour Cycles, was a French manufacturer of bicycle brakes, tool kits, and racks. MAFAC was founded in post-war France under the name "Securite" which was changed to MAFAC in the fall of 1947. Initially MAFAC manufactured cantilever brakes, brake levers, and tool kits. Later MAFAC brakes were of a center-pull design where a cross cable links the two arms of the brake, which is actuated by pulling from the center of this cable. MAFAC's rubber brake hoods, originating in the late 1940's, had built-in adjusters, allowing a rider to adjust the brakes while riding. Additionally the center-pull brakes were of a design that allowed them to clear fenders, front rack mounts, handle bar mount bags, and large tires. This versatility made MAFAC brakes one of the most popular models from the late 1950's through the 1970's. The ability to clear larger diameter tires also led to the use of MAFAC brakes on many of the earliest mountain bikes, including one of the first package-built mountain bikes, the 1982 Specialized Stumpjumper. The center-pulls were solid brakes and were well made, but were relatively inexpensive. This put MAFAC in the enviable position their components being specified on everything from the highest end race bikes to run of the mill bikes. The lack of exclusivity in the brand, however, may have contributed to MAFAC's disappearance in the 1980's.
