Campagnolo Nuovo Record 0104007 (1982 - 1987, 3-hole standard band)
Back
Report

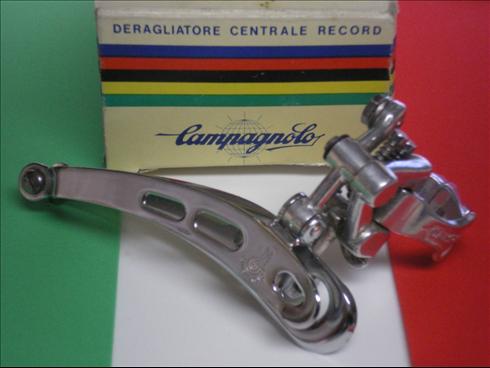

Main Photo
Category:  Front Derailleurs
Name:  Campagnolo Nuovo Record 0104007 (1982 - 1987, 3-hole standard band)
Brand:  Campagnolo
Primary Group:  Nuovo Record
Model:  1052/NT or 0104007
Years:  1982 - 1985
Country:  Italy
Weight:  95 grams
Added By: simplex56 on 01/12/08
Updated By: cudak888 on 01/12/12
Additional Photos - click for full size
Campagnolo Nuovo Record 0104007 (1982 - 1987,Campagnolo Nuovo Record 0104007 (1982 - 1987,Campagnolo Nuovo Record 0104007 (1982 - 1987,Campagnolo Nuovo Record 0104007 (1982 - 1987,
# Rings Designed For DoubleOuter Plate MarkingsCampagnolo winged wheel, 3 ovalized cutouts
Inner Plate MarkingsBREV. CAMPAGNOLOClamp MarkingsCAMPAGNOLO
Inner Clamp MarkingsDesign CategoryParallelogram
Pivot Arm MarkingsNonePlate MaterialSteel
Clamp Style28.6mm ClampCable Attachment Bolt8mm Wrench
CableStop NoClamp Bolt Type8mm Wrench
Max Ring Difference 18T
General Information

Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 6)BrandGroup
Campagnolo Record 0104007 (1978, 4-hole)CampagnoloNuovo Record
Campagnolo Record 1052/1CampagnoloNuovo Record
Campagnolo Record 1052/1 (1973-1977)CampagnoloNuovo Record
Campagnolo Record 1052/1 (later body with cable stop)CampagnoloNuovo Record
Campagnolo Record 1052/NT (1978 - 1982, 3-hole narrow band)CampagnoloNuovo Record
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Nuovo RecordCampagnolo1966 - 1987, Road RaceView 48 Components
Details:  Production ended in 1987.
