Campagnolo 0305, (Nuovo) Gran Sport (116 BCD Double)
Back
Report

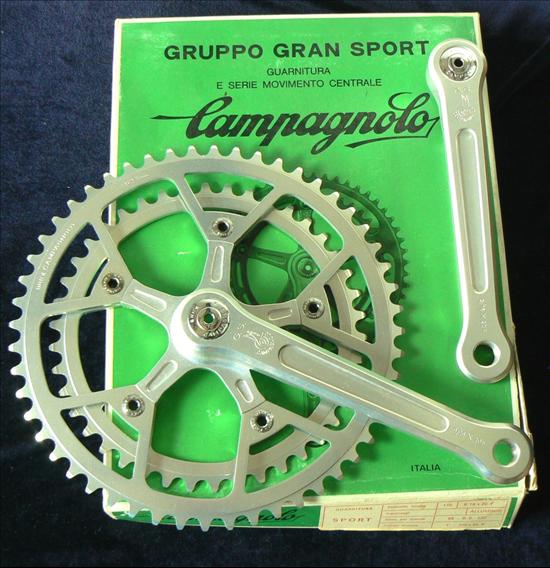

Main Photo
Category:  Cranksets
Name:  Campagnolo 0305, (Nuovo) Gran Sport (116 BCD Double)
Brand:  Campagnolo
Primary Group:  (Nuovo) Gran Sport
Model:  0305
Years:  1980's
Country:  Italy
Weight:  670 grams
Added By: JFischer on 12/18/07
Updated By: Tombo on 05/04/16
Additional Photos - click for full size
Campagnolo 0305, (Nuovo) Gran Sport (116 BCD Campagnolo 0305, (Nuovo) Gran Sport (116 BCD Campagnolo 0305, (Nuovo) Gran Sport (116 BCD
Chainring CountDoubleBCD 116mm
BB StyleSquare Taper (ISO)Pedal Threads9/16" x 20 (English)
BB Length 120mm (on 68mm BB shell)Flutes Crank Arm; Spider
Lengths 170Arm/Spider MaterialAluminum Alloy
Front MarkingsG.S. Winged wheel logo. Wide crank arm fluteBack Markings
Extractor Threading 22x1mm (Standard)
General Information
Campagnolo 0306, (Nuovo) Gran Sport (116 BCD Triple) is the Triple version of this crank; model number 0306.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal ResourcesGear Calculator
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 4)BrandGroup
Campagnolo 0304, (Nuovo) Gran Sport (144 BCD)Campagnolo(Nuovo) Gran Sport
Campagnolo 0304, (Nuovo) Gran Sport (144 BCD; bianchi labeled)Campagnolo(Nuovo) Gran Sport
Campagnolo 0306, (Nuovo) Gran Sport (116 BCD Triple)Campagnolo(Nuovo) Gran Sport
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
(Nuovo) Gran Sport (1974-198X)Campagnolo1974 - , Sport & RecreationView 20 Components
Details:  The reintroduction of the "Gran Sport" name in the mid 70's found the group situated below the "Record" groups in the Campagnolo line up.
This group was eventually phased out in the early to mid 80's with the introduction of the Victory and Triomphe groups. According to the comments in the '85 Campa catalogue e.g. the G.S. crankset (#0304), the pedals (#3700) and the BB (#3331) - or at least the G.S. axle (#3332) - were "no more available and replaced by the Victory range..."
