| Category: | Front Derailleurs |

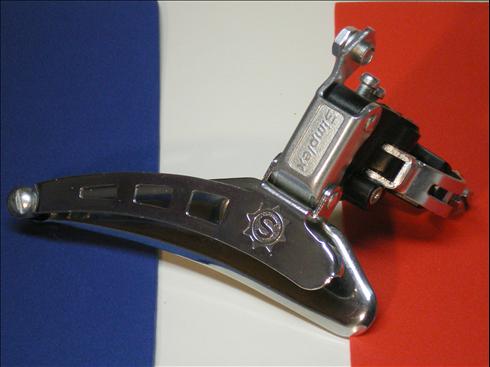

| Name: | Simplex SX A32 |
| Brand: | Simplex |
| Model: | SX A32 |
| Years: | 1984 - ? |
| Country: | France |
| Weight: | 123 grams |
| Added By: | simplex56 on 01/10/08 |
| Updated By: | peterbman on 03/12/16 |
Additional Photos - click for full size |
|
|
# Rings Designed For  | Double | Outer Plate Markings | Simplex sun logo, three cutouts |
| Inner Plate Markings | Brevete Made in France Modele Depose | Clamp Markings | |
| Inner Clamp Markings | SIMPLEX | Design Category | Parallelogram |
| Pivot Arm Markings | Simplex | Plate Material | Chrome plated steel |
| Clamp Style | 25.4mm Clamp; 28.6mm Clamp | Cable Attachment Bolt | 8mm Wrench |
| CableStop | Yes | Clamp Bolt Type | 8mm Wrench;
Flat Head Scewdriver |
| Max Ring Difference | 14T | | |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 2) | Brand | Group |
| Simplex SX A32 (white) | Simplex | |
Known for their black plastic (Delrin) derailleurs during the "bike boom" of the 1970's, they were at the forefront of innovation over the years, producing such highly regarded items as the Super LJ derailleurs, Retrofriction shifters, and very popular line of seat posts.
