Main Photo
Category:  Brakes

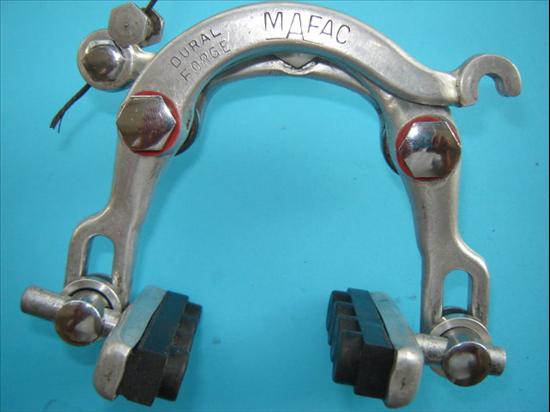

Name:  MAFAC Racer (red plastic washer; lettered DURAL FORGE MAFAC)
Brand:  MAFAC
Model:  Racer
Years:  Late 1960's
Country:  France
Added By: vxpro on 02/29/08
Updated By: peterbman on 10/31/14
Additional Photos - click for full size
MAFAC Racer (red plastic washer; lettered DURMAFAC Racer (red plastic washer; lettered DUR
Design Category Center PullCable Adjuster
Quick Release Yes - Straddle CableAttachment Bolt TypeExterior Nut
Cable Attachment BoltStraddle Cable - Single EndedFront of Arm MarkingsDural Forge Mafac
Back of Arm MarkingsMade In FranceReach CategoryLong Reach
Min Reach50mmMax Reach75mm
General Information
Wide drop (50 to 75mm) which could accommodate most frames although in the late 50s a shallow drop version was also offered (45 to 68mm).  This variation with the red plastic bushings, but without the 'Racer' stamping would indicate a late 60's era - unless the bushings were a later after-market addition to a set of brakes which originally did not have them.
Reported By:PerB
Report Date:2/10/2017
Report Reason:Incorrect Content, This version of Mafac brakes was used from early 1960ies rather than late

Quality:Rarity:


Outstanding Report Submitted
Additional Resources
Resources:Reference & ChartsCatalogs
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 2)BrandGroup
MAFAC Racer (first version with oil holes; lettered DURAL FORGE MAFAC)MAFAC
Brand Information(click to expand)

MAFAC, or Manufacture Auvergnoise de Freins et Accessoires pour Cycles, was a French manufacturer of bicycle brakes, tool kits, and racks. MAFAC was founded in post-war France under the name "Securite" which was changed to MAFAC in the fall of 1947. Initially MAFAC manufactured cantilever brakes, brake levers, and tool kits. Later MAFAC brakes were of a center-pull design where a cross cable links the two arms of the brake, which is actuated by pulling from the center of this cable. MAFAC's rubber brake hoods, originating in the late 1940's, had built-in adjusters, allowing a rider to adjust the brakes while riding. Additionally the center-pull brakes were of a design that allowed them to clear fenders, front rack mounts, handle bar mount bags, and large tires. This versatility made MAFAC brakes one of the most popular models from the late 1950's through the 1970's. The ability to clear larger diameter tires also led to the use of MAFAC brakes on many of the earliest mountain bikes, including one of the first package-built mountain bikes, the 1982 Specialized Stumpjumper. The center-pulls were solid brakes and were well made, but were relatively inexpensive. This put MAFAC in the enviable position their components being specified on everything from the highest end race bikes to run of the mill bikes. The lack of exclusivity in the brand, however, may have contributed to MAFAC's disappearance in the 1980's.
