| Category: | Front Derailleurs |

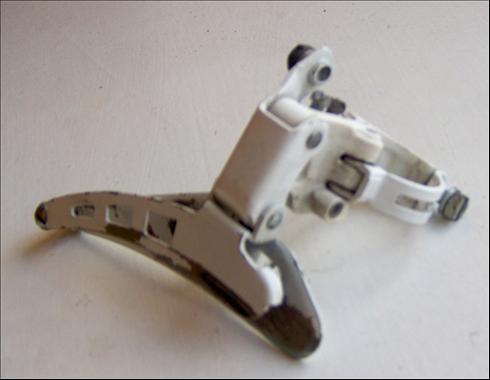

| Name: | Simplex SX A32 (white) |
| Brand: | Simplex |
| Model: | SX A32 |
| Years: | 1984 - 1995 |
| Country: | France |
| Weight: | 117 grams (avg)
View Weight List |
| Added By: | markp on 06/25/08 |
| Updated By: | tmundry67 on 03/04/18 |
Additional Photos - click for full size |
|
 Verify Component Photos |
|
# Rings Designed For  | Double | Outer Plate Markings | three cutouts |
| Inner Plate Markings | Brevete Made in France Modele Depose | Clamp Markings | SIMPLEX (on back side) |
| Inner Clamp Markings | SIMPLEX, brevete 4 | Design Category | Parallelogram |
| Pivot Arm Markings | SIMPLEX (e.g. white on black or black on white) | Plate Material | Chrome plated steel |
| Clamp Style | 25.4mm Clamp | Cable Attachment Bolt | 8mm Wrench |
| CableStop | Yes | Clamp Bolt Type | 8mm Wrench;
Flat Head Scewdriver |
| Max Ring Difference | 14T | | |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 2) | Brand | Group |
| Simplex SX A32 | Simplex | |
Known for their black plastic (Delrin) derailleurs during the "bike boom" of the 1970's, they were at the forefront of innovation over the years, producing such highly regarded items as the Super LJ derailleurs, Retrofriction shifters, and very popular line of seat posts.
