Campagnolo A0R7 180mm, Record 1986-1989
Back
Report

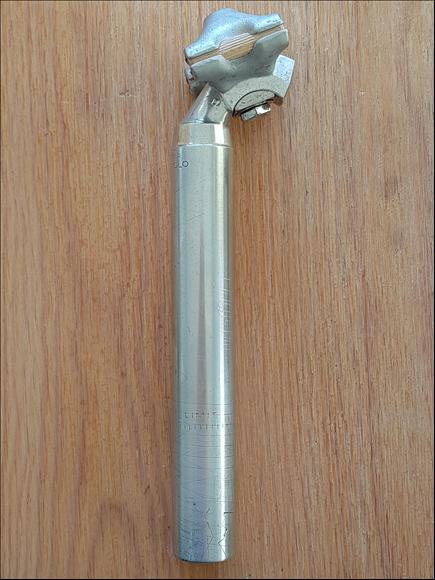

Main Photo
Category:  Seat Posts
Name:  Campagnolo A0R7 180mm, Record 1986-1989
Brand:  Campagnolo
Primary Group:  Record 1986-1989
Model:  A0R7
Years:  1986 - 1989
Country:  Italy
Weight:  236 grams (Actual), for 27,2mm
Added By: Tombo on 07/26/18
Updated By: Tombo on 07/27/18
Additional Photos - click for full size
Campagnolo A0R7 180mm, Record 1986-1989Campagnolo A0R7 180mm, Record 1986-1989Campagnolo A0R7 180mm, Record 1986-1989Campagnolo A0R7 180mm, Record 1986-1989Campagnolo A0R7 180mm, Record 1986-1989Campagnolo A0R7 180mm, Record 1986-1989Campagnolo A0R7 180mm, Record 1986-1989
 Verify Component Photos
MarkingsTop/front: "BREV. INTER. CAMPAGNOLO";
at min insert: "MADE IN ITALY" + "LIMIT" + {diameter}
MaterialAluminum
Shaft DesignTapered at the upper endSaddle Attachment StyleSingle bolt
Saddle Attachment Bolt Size(s)13mm wrenchOverall Length 180mm
Max Height 150mmSetback 25mm
General Information
"M" at left-hand side of the clamp; should be the production date code (M=1988??)



Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 2)BrandGroup
Campagnolo A0R7-S 130mm, Record 1986-1989CampagnoloRecord 1986-1989
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Record 1986-1989CampagnoloView 2 Components
