| Category: | Brakes |

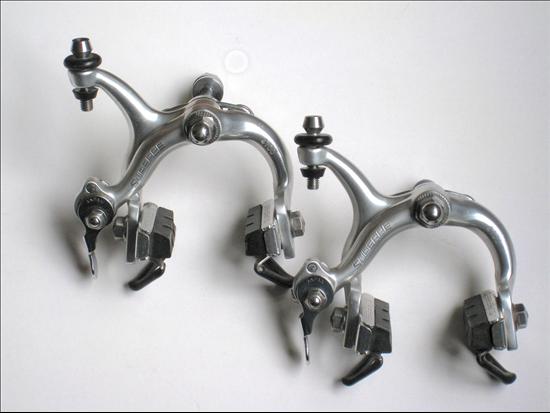

| Name: | SunTour CB-1000, Superbe |
| Brand: | SunTour |
| Primary Group: | Superbe |
| Model: | CB-1000 |
| Years: | 1977 - 1979 |
| Country: | Japan |
| Weight: | 360 grams (Actual), per pair |
| Added By: | Gazelleer on 08/12/17 |
| Updated By: | Gazelleer on 08/14/17 |
Additional Photos - click for full size |
|
|
Design Category  | Single Pivot | Cable Adjuster | Infinite |
| Quick Release | Yes - at cable attachment | Attachment Bolt Type | Exterior Nut |
| Cable Attachment Bolt | 8mm Nut | Front of Arm Markings | SUPERBE 4700 |
| Back of Arm Markings | | Reach Category | Long Reach |
| Min Reach | 47mm | Max Reach | 57mm |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Superbe | SunTour | 1977 - 1985, Road Race | View 28 Components |
| Details: Face lift to "Superbe II" in 1983 |
SunTour (Maeda)
SunTour derailleurs have a two-letter date code. On rear derailleurs the code is stamped on the back side of the inner parallel arm. On front derailleurs it is stamped on the back side of the inner cage.
The first letter represents the year. Larry Osborn and I believe O (Oh) is 1972, V is 1979 and A is 1984. As with Shimano, the second letter is the month code, where A is January and L is December.
SunTour Year Code
|
N |
O |
P |
Q |
R |
S |
T |
U |
V |
W |
X |
Y |
Z |
|
1971 |
1972 |
1973 |
1974 |
1975 |
1976 |
1977 |
1978 |
1979 |
1980 |
1981 |
1982 |
1983 |
| |
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
|
|
|
|
1984 |
1985 |
1986 |
1987 |
1988 |
1989 |
1990 |
1991 |
1992 |
|
|
|
|
SunTour Month Code
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
|
Jan |
Feb |
Mar |
Apr |
May |
Jun |
Jul |
Aug |
Sep |
Oct |
Nov |
Dec |
The earliest Suntour derailleur I have found with a code is marked OF. A rear derailleur marked OD (corresponding to April of 72) was reported by Leighton Walter. I have a bike that dates from between 1970 to 1972 that has the original SunTour derailleurs. These derailleurs do not have date codes on them, so I believe the coding started sometime between 1970 and April of 1972.
(source: vintage-trek.com)
