GB 531 (Toni Merken style)
Back
Report

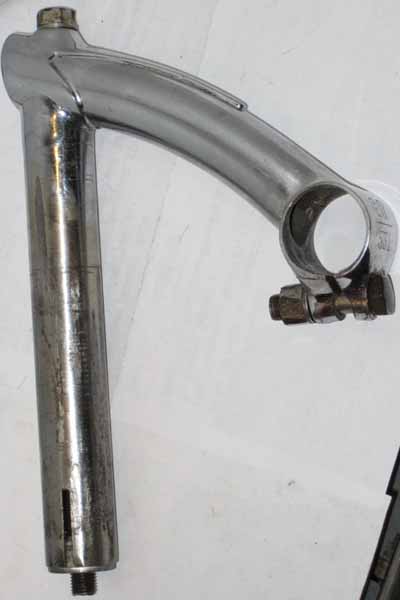

Main Photo
Category:  Stems
Name:  GB 531 (Toni Merken style)
Brand:  GB
Model:
Years:  Early 1960's
Country:  England
Added By: bikeville on 01/02/08
Updated By: peterbman on 05/19/19
Additional Photos - click for full size
GB 531 (Toni Merken style)GB 531 (Toni Merken style)GB 531 (Toni Merken style)
 Verify Component Photos
MaterialSteelMarkingsGB 531
Bar Clamp Size 1"; 25.4Quill Size 22.2
Expander Style ConicalExpander Bolt Size
Binder Bolt Size
General Information
This stem was available in both Reynolds 531 steel (as per this example) and in Accles and Pollock 'KROMO' steel. Both high-tensile steels, the former being much more famous when used in bike frames. The cost was the same in either material. From the surviving GB catalogues, the Toni Merken only appears in the early 60s one. It was available in 31/8", 3¾" & 4" extension lengths.  This was the first GB stem to have a distinctive model name. Unfortunately, GB seem to have got it slightly wrong since the champion German track rider after whom it is named (and who can be seen using this design of stem in contemporary photos - even if it is not an actual GB one) was called Merkens with an 's' at the end!
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & Charts
