Campagnolo FC-01CH, Chorus
Back
Report

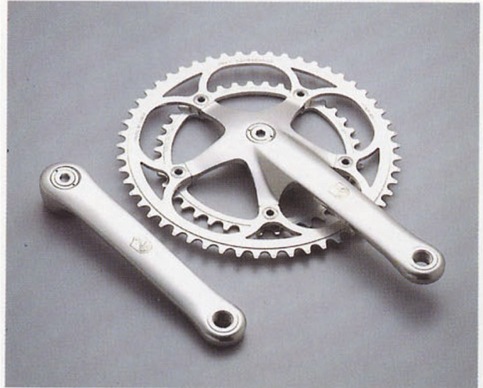

Main Photo
Category:  Cranksets
Name:  Campagnolo FC-01CH, Chorus
Brand:  Campagnolo
Primary Group:  Chorus
Model:  FC-01CH
Years:  1992 - 1994
Country:  Italy
Added By: JFischer on 10/29/09
Updated By: JFischer on 05/09/10
Additional Photos - click for full size
Campagnolo FC-01CH, Chorus
Chainring CountDoubleBCD 135mm
BB StyleSquare TaperPedal Threads9/16" x 20 (English)
BB Length 111mmFlutes None
Lengths 170; 172.5; 175Arm/Spider MaterialAluminum Alloy
Front MarkingsCampagnolo shield logoBack Markings
Extractor Threading 22x1 Left Hand / Integrated
General Information

Probably a hand-me-down from the discontinued Croce D'Aune group of 1991.  Often confused with the D'Aune for this reason, as well as the Athena crank of the late 80's and early 90's (Athena does not have the integrated crank bolts).  Oddly enough, the Athena crank inherited what appears to be the previous generation Chorus crank in 92, further confusing the mix.  This version of the Chorus crankset did include an incorporated extractor as seen in the photos.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal ResourcesGear Calculator
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Chorus RSCampagnolo1991 - 1994, Road RaceView 19 Components
Details:  Second generation C-Record era Chorus (aka Chorus RS), was released in 1991 with cranks from the first generation Croce D'Aune group and Record brake pads and holders for the Second generation Monoplaner brakes.
