Campagnolo 4051/1, Nuovo Super Record
Back
Report

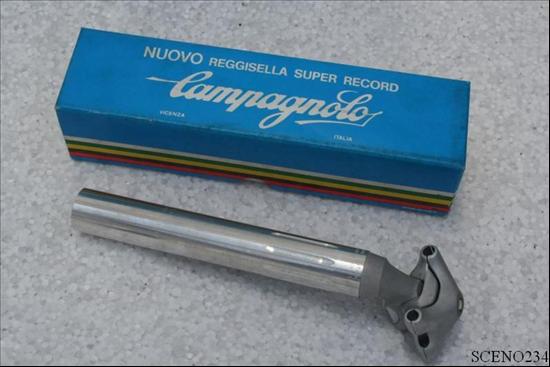

Main Photo
Category:  Seat Posts
Name:  Campagnolo 4051/1, Nuovo Super Record
Brand:  Campagnolo
Primary Group:  Super Record
Model:  4051/1
Years:  1980's
Country:  Italy
Weight:  224.5 grams (avg)
View Weight List
Added By: JFischer on 02/19/08
Updated By: Tombo on 04/22/18
Additional Photos - click for full size
Campagnolo 4051/1, Nuovo Super RecordCampagnolo 4051/1, Nuovo Super RecordCampagnolo 4051/1, Nuovo Super RecordCampagnolo 4051/1, Nuovo Super RecordCampagnolo 4051/1, Nuovo Super RecordCampagnolo 4051/1, Nuovo Super Record
 Verify Component Photos
Markingsin front "Brev. Inter. Campagnolo" above flutes;
{diamater size} on the back
MaterialAluminum
Shaft DesignFlutedSaddle Attachment StyleSingle bolt
Saddle Attachment Bolt Size(s)1/2" (12,7mm)Overall Length 215mm
Max Height 160mmSetback 20mm
General Information
Nuovo Super Record, aka Super Record Second Generation.  Circa 1985.
Available diameters are from 25.0 resp. 25.8mm through to 27.2/27.4mm in 0.2mm increments.

Length of the 8 flutes are 42mm, width 5mm; length of the polished part is 175mm


Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 5)BrandGroup
Campagnolo 4051, Super Record (Campagnolo Script)CampagnoloSuper Record
Campagnolo 4051, Super Record Fluted (two-bolt)CampagnoloSuper Record
Campagnolo 4051/1, Nuovo Super Record (polished upper)CampagnoloSuper Record
Campagnolo 4051/1, Nuovo Super Record (semi polished upper)CampagnoloSuper Record
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Super RecordCampagnolo1974 - 1987, Road RaceView 43 Components
User Comments
Sign-in Required
  Loading Comments


By pressing Verify below, you express verification that the photos shown are indeed of the component listed. Please do not verify if you are not sure that all photos are of the correct item. If you identify a photo that is NOT of the correct item, please use the Report feature to flag that photo.

Note: You can not verify photos that you have uploaded.
WeightSourceNotesAdded By
224 GramsUnknown(27.2 mm) cleaned & not greased Tombo
225 GramsActual JFischer
