| Category: | Headsets |
| Name: | OMAS Grand Prix |
| Brand: | OMAS |
| Model: | Grand Prix |
| Years: | 1980's |
| Country: | Italy |
| Weight: | 112 grams (Actual),
incl. a 2mm spacer |
| Added By: | cinco on 11/16/07 |
| Updated By: | Tombo on 04/24/19 |

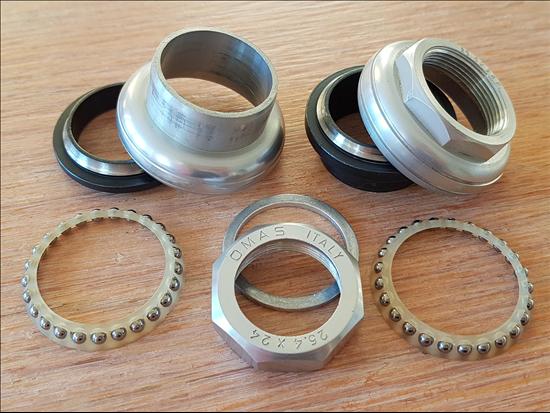

Additional Photos - click for full size |
|
 Verify Component Photos |
|
| Body Material | Aluminum; Steel | Upper Bearing Size | 25 x 3/16" (retainer) |
| Lower Bearing Size | 25 x 3/16" (retainer) | Crown Race Size | ISO (26.4mm) |
| Upper Cup Markings | none resp. double flute;
but "OMAS ITALY" + {threading} on the top nut | Lower Cup Markings | none resp. double flute |
Available Threading  | English/ISO/Italian (25.4mm x 24TPI) | Stack Height | ~28,5mm (upper;
incl. ~2mm spacer) + ~13mm (lower) = ~41,5mm total |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
