Fichtel & Sachs 415
Back
Report

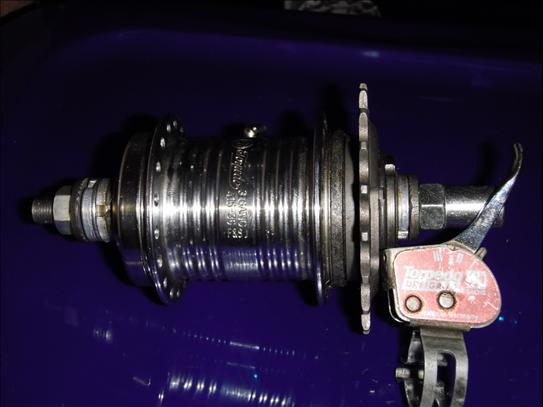

Main Photo
Category:  Geared Hubs
Name:  Fichtel & Sachs 415
Brand:  Fichtel & Sachs
Model:  415
Years:  1962 - 1984
Country:  Germany
Added By: bikamper on 12/12/09
Updated By: cguder on 01/01/10
Additional Photos - click for full size
Fichtel & Sachs 415
Hub MarkingsGear Count3
Spoke Drilling36Includes BrakeNo
Lockout Nut Spacing110mmShell MaterialSteel
Gear Ratios1. Gear: 1:0.73 2. Gear: 1:1 3.Gear: 1:1.36
General Information
Fitchel & Sachs Torpedo 3 speed hub. Forerunner to Sachs and SRAM. Very, very well made hub. This one has a 19 tooth cog and can be interchanged with SA.  In 1962 Fichtel & Sachs introduced two new 3-Gear-hubs: Model 515 with coaster brake and this Model, No. 415 without. Contary to their forerunner model No. 55 (from which also a version with and without brake has been marketed) these models were fitted with a red shifter that allowed an idle running between second and third gear (marked with a triangular sign). Only in the first years of production these hubs were built with grease nipples. In Germany this model No. 415 wasn't as popular as the brake-fitted No. 515. It had more the function of an export model.
Quality:Rarity:
