| Category: | Rims |
| Name: | Araya Aero 1 (ADX-1) |
| Brand: | Araya |
| Model: | ADX-1 |
| Years: | Late 1970's - Early 1990's |
| Country: | Japan |
| Weight: | 330 grams |
| Added By: | CV-6 on 08/06/07 |
| Updated By: | JFischer on 02/08/10 |

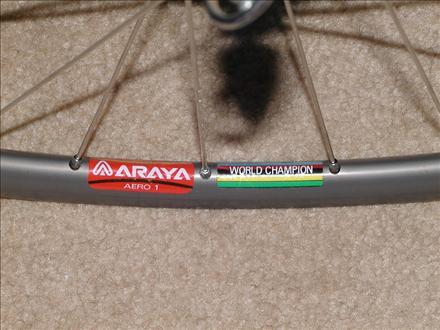

Additional Photos - click for full size |
|
|
Rim Type  | Tubular | Material | Aluminum |
| Rim Size | 24" (520mm); 700c (622 mm) | Spoke Drillings | 20; 24; 28; 32; 36 |
| Label Markings | Araya Aero 1, World Champion, Super Hard Anodized | Valve Drilling | Presta |
| Rim Height (mm) | 18.2 | Rim Outer Width (mm) | 18.8 |
| Eyelets | Requires washer/insert | Seam Joint | |
| Finish | Hard Anodized; Silver Anodized | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 3) | Brand | Group |
| Araya ADX-1W | Araya | |
| Araya Aero 2 (ADX-2) | Araya | |
