Williams C34
Back
Report

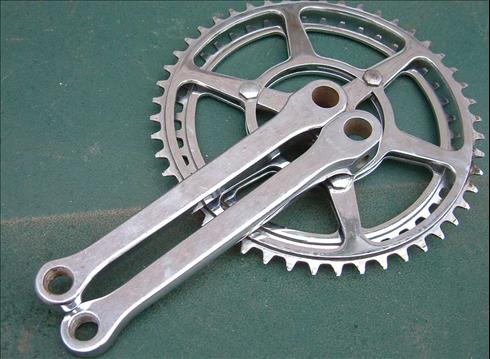

Main Photo
Category:  Cranksets
Name:  Williams C34
Brand:  Williams
Model:  C34
Years:  1920's - Early 1960's
Country:  England
Added By: daveross on 01/31/08
Updated By: JFischer on 12/28/08
Additional Photos - click for full size
Williams C34Williams C34
 Verify Component Photos
Chainring CountDoubleBCD
BB StyleCotteredPedal Threads9/16" x 20 (English)
BB Length Flutes None
Lengths 165; 170Arm/Spider MaterialSteel
Front MarkingsWILLIAMSBack MarkingsWilliams' date coding
Extractor Threading N/A (Cottered)
General Information
An elegant 3-armed crankset. Williams crank arm lengths were expressed in inches. I believe the normal range was fairly small, including 6-1/2", 6-3/4" and 7".  Chainrings were available from 34-60 (in even numbers), and 16-30 in inch pitch variations.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsGear Calculator
Brand Information(click to expand)
 Williams produced cranksets from the 1920's through the early 1980's or later.  Most noted, perhaps unfairly, by their lower end cranksets which changed little from the 1920's into the early 60's.  ClassicLightweights has more information on this brand.
