Shimano SS-7000, Dura-Ace 10
Back
Report
Main Photo
Category:  Single Sprockets
Name:  Shimano SS-7000, Dura-Ace 10
Brand:  Shimano
Primary Group:  Dura-Ace 10
Model:  SS-7000
Years:  Late 1970's - Early 1980's
Country:  Japan
Added By: floid on 01/03/08
Updated By: JFischer on 01/10/10

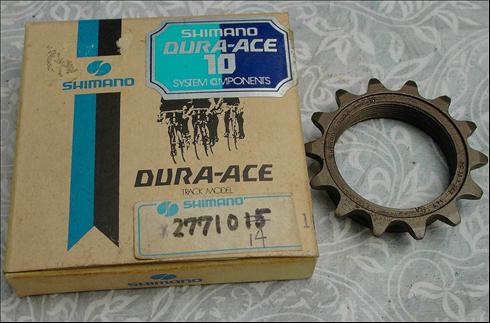

Additional Photos - click for full size
Shimano SS-7000, Dura-Ace 10Shimano SS-7000, Dura-Ace 10Shimano SS-7000, Dura-Ace 10Shimano SS-7000, Dura-Ace 10
Width3mmMaterialnickel chromium molybdenum steel
Identifying MarkingsShimano Dura-Ace 10ThreadingBC33 x 24 TPI; English
Available Tooth Count14T; 15T; 16T
General Information
14 th   22,1 gr
16 th   29,5 gr

These came in two versions, the first made for the BC33x24tpi threading of the Shimano Dura-Ace 10 hubs, the other type for standard english threaded track hubs.  Be aware of this and know what you're buying when looking for these sprockets.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Dura-Ace 10, 7000 seriesShimano1977 - 1984, TrackView 8 Components
Details:   Shimano Dura-Ace 10 track groupset used a 10mm pitch chain and gears. See the comparison photo above (on Group View page) of the standard Dura-Ace track group (left) compared to the Dura-Ace 10 track group (right).
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
