Shimano HS-6300, 600 AX
Back
Report

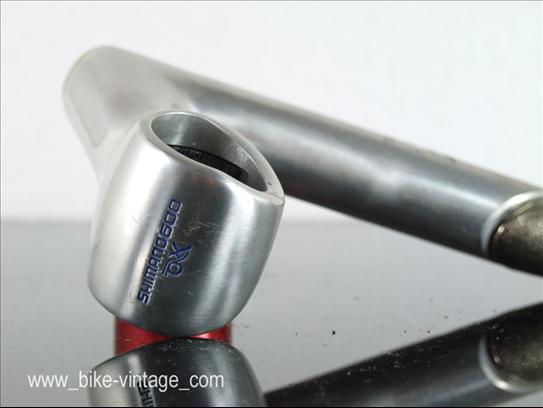

Main Photo
Category:  Stems
Name:  Shimano HS-6300, 600 AX
Brand:  Shimano
Primary Group:  600 AX
Model:  HS-6300
Years:  1981 - 1984
Country:  Japan
Weight:  286 grams
Added By: JFischer on 08/06/07
Updated By: andris.82 on 11/26/12
Additional Photos - click for full size
Shimano HS-6300, 600 AXShimano HS-6300, 600 AXShimano HS-6300, 600 AXShimano HS-6300, 600 AXShimano HS-6300, 600 AX
MaterialAluminumMarkingsShimano 600 AX
Bar Clamp Size 25.4; 26.0Quill Size 22.2
Expander Style WedgeExpander Bolt Size
Binder Bolt Size 6mm Allen Key
General Information
Aero stem by Shimano.  Similar in design and function to the Cinelli 1R stem.  Avaliable in both 25.4 and 26.0 clamp sizes.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
600 AX, 6300 seriesShimano1981 - 1984, Road RaceView 19 Components
Details:   The Shimano 600 AX groupset was the second line of shimano's Aerodynamic set of groups comprised if the Dura-Ace AX, 600 AX, and Adamas AX groups.  Every part of the AX groups were designed to be as aerodynamic as possible, as evident by the brakes, seatposts and almost every other part in the group.  The AX groups also used shimano's 1" diameter axle Dyna-Drive pedal system.
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
