Dunlop
Back
Report
Main Photo
Category:  Rims
Name:  Dunlop
Brand:  Dunlop
Model:
Years:  N/A
Country:  England
Weight:  729 grams
Added By: ThermionicScott on 12/03/17
Updated By: ThermionicScott on 12/06/17
Additional Photos - click for full size
DunlopDunlop
 Verify Component Photos
Rim Type Low-pressure clincherMaterialSteel
Rim Size650a (590 mm)Spoke Drillings32; 40

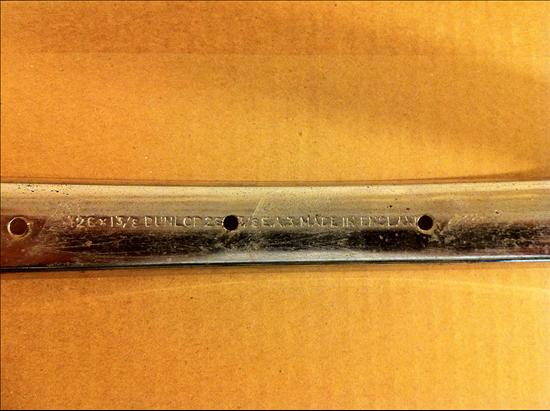

Label Markings26 X 1 3/8 DUNLOP 26 X 1 3/8 E.A.3. MADE IN ENGLANDValve DrillingSchrader
Rim Height (mm)12.5Rim Outer Width (mm)25.4-28.6
EyeletsNoneSeam Joint Welded
FinishBright Chromed Steel
Wheel Lacing Data
Rim Size 590mmERD 583
General Information
This is the front rim from my 1964 Armstrong 3-speed.  By this point, it was a Raleigh sub-brand.  I replaced the rim with a Sun CR-18, which had a slightly smaller ERD.

Rim sidewalls are angled outward (not parallel) and so the rim width is 1" at the narrowest and 1-1/8" at the widest, with the inner width at about 13/16" and the rim height about 1/2".

Weight is for the 32h drilling.  I'm sure the 40h version weighs ever so slightly less.  :^)
Quality:Rarity:
