| Category: | Rear Derailleurs |

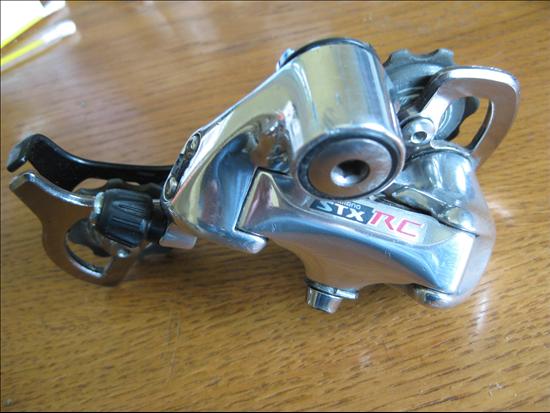

| Name: | Shimano RD-MC38, STX-RC |
| Brand: | Shimano |
| Primary Group: | STX RC |
| Model: | RD-MC38 |
| Years: | Mid 1990's - ? |
| Country: | Japan |
| Added By: | clint462002 on 03/25/10 |
| Updated By: | JFischer on 03/25/10 |
Additional Photos - click for full size |
|
|
| Outer Plate Markings | STX-RC | Inner Plate Markings | Shimano RD-MC38 |
| Material | Aluminum Alloy | Design Category | Inline parallelogram |
| Attachment Bolt Size | 5mm Allen Key | Cable Attachment Bolt Size | 5mm Allen Key |
| Shifting Systems | Shimano SIS
Shimano STI
Friction | Cable Adjuster | Yes |
| Cage Length | Long | Max Cog Size | 32 |
| Max Chain Wrap | 39T | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
