| Category: | Rear Derailleurs |

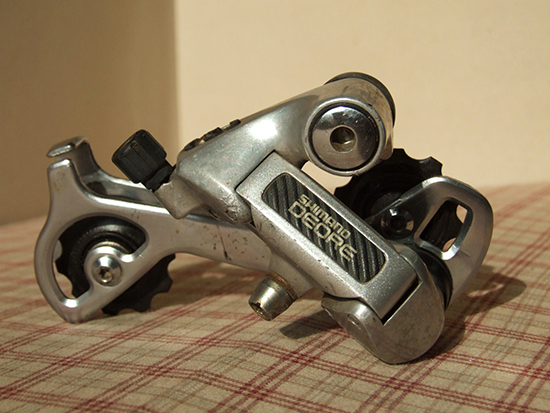

| Name: | Shimano RD-MT62, Deore II |
| Brand: | Shimano |
| Primary Group: | Deore II |
| Model: | RD-MT62 |
| Years: | 1989 |
| Country: | Japan |
| Weight: | 310 grams |
| Added By: | JFischer on 02/06/08 |
| Updated By: | Slider74 on 04/19/18 |
Additional Photos - click for full size |
|
 Verify Component Photos |
|
| Outer Plate Markings | Shimano Deore | Inner Plate Markings | RD-MT62 Shimano Japan VIA |
| Material | Aluminum Alloy; Steel | Design Category | Slant parallelogram |
| Attachment Bolt Size | 5mm Allen Key | Cable Attachment Bolt Size | 5mm Allen Key |
| Shifting Systems | Shimano SIS
Shimano STI
Friction | Cable Adjuster | Yes |
| Cage Length | Long | Max Cog Size | 32 |
| Max Chain Wrap | 38T | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Deore II (MT62) | Shimano | 1989 - 1989, Mountain Bike | View 8 Components |
| Details: MT62 series |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
