Campagnolo 4001, Super Record (2nd gen, ver.1)
Back
Report

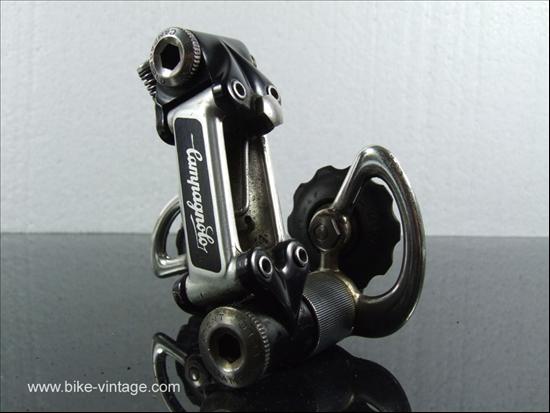

Main Photo
Category:  Rear Derailleurs
Name:  Campagnolo 4001, Super Record (2nd gen, ver.1)
Brand:  Campagnolo
Primary Group:  Super Record
Model:  4001 / 0102018
Years:  1978 - 1984
Country:  Italy
Weight:  180 grams
Added By: JFischer on 07/06/07
Updated By: cudak888 on 08/22/11
Additional Photos - click for full size
Campagnolo 4001, Super Record (2nd gen, ver.1Campagnolo 4001, Super Record (2nd gen, ver.1Campagnolo 4001, Super Record (2nd gen, ver.1Campagnolo 4001, Super Record (2nd gen, ver.1Campagnolo 4001, Super Record (2nd gen, ver.1Campagnolo 4001, Super Record (2nd gen, ver.1Campagnolo 4001, Super Record (2nd gen, ver.1Campagnolo 4001, Super Record (2nd gen, ver.1
 Verify Component Photos
Outer Plate MarkingsCampagnolo ScriptInner Plate Markings"Superecord" (until 1982)
MaterialAluminum AlloyDesign CategoryInline parallelogram
Attachment Bolt Size6mm Allen KeyCable Attachment Bolt Size8mm Wrench
Shifting SystemsFrictionCable AdjusterNo
Cage LengthShortMax Cog Size28
Max Chain Wrap26 tooth difference
General Information
Second-generation variant of the Super Record rear derailer, w/revised pulley cage design. Parallelogram swings farther forward then on previous generation.  Model identification numbers were changed in 1982 to the longer 7 digit number.  Version 1 of this derailleur included the bolt-on body spring which was later revised into a non-removable spring design attached to one of the pivot points. Rear plate marked with unique "Superecord" lettering until 1981/2.

Final variants from 1985-1987 do not have replaceable parallelogram springs. This variant has its own entry.

Variants with either gloss and black finishes exist (along with at least one known example with each end of different lusters). A comparison photo (of final-generation 1985-1987 RD's) is shown.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 4)BrandGroup
Campagnolo 4001, Super Record (1st Generation)CampagnoloSuper Record
Campagnolo 4001, Super Record (2nd gen, matte finish)CampagnoloSuper Record
Campagnolo 4001, Super Record (2nd gen. ver. 2)CampagnoloSuper Record
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Super RecordCampagnolo1974 - 1987, Road RaceView 43 Components
