| Category: | Rear Derailleurs |
| Name: | Shimano 7700, Dura-Ace 7700 |
| Brand: | Shimano |
| Primary Group: | Dura-Ace 7700 |
| Model: | 7700 |
| Years: | 2001 - ? |
| Country: | Japan |
| Added By: | AghLeslie on 08/29/17 |
| Updated By: | AghLeslie on 08/29/17 |

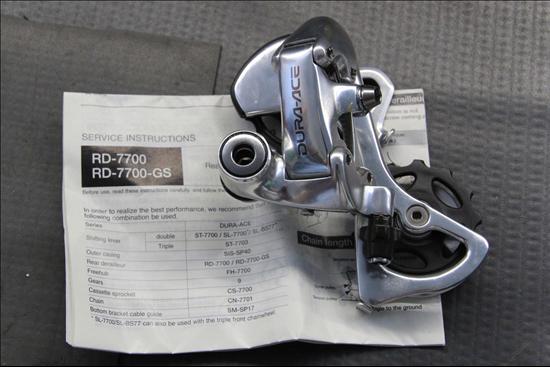

Additional Photos - click for full size |
|
|
| Outer Plate Markings | | Inner Plate Markings | |
| Material | Aluminum Alloy | Design Category | |
| Attachment Bolt Size | | Cable Attachment Bolt Size | |
| Shifting Systems | Dura-Ace SIS
Dura-Ace STI | Cable Adjuster | Yes |
| Cage Length | Medium | Max Cog Size | 28 |
| Max Chain Wrap | | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Dura-Ace 7700 Series | Shimano | 1997 - 2003, Road Race | View 14 Components |
Details: Shimano always leads with Dura-Ace. In 1997, 9 speed was introduced. They kept with the shift cables coming out of the side of the STI levers and greatly improved the shift quality. Ultegra (600) and 105 followed suit. 9 speed uses the same freehub body size as 8 speed.
|
| Group Name | Brand | Quick Info | Browse Group Components |
| Dura-Ace 7703 | Shimano | Road Race | View 2 Components |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
