Campagnolo 1034, Record (Low Flange)
Back
Report

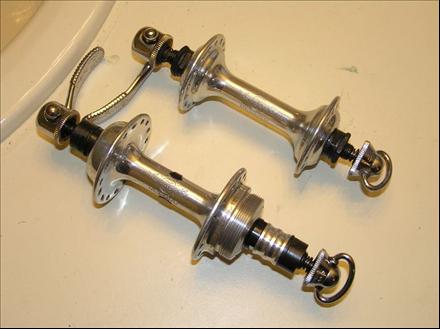

Main Photo
Category:  Hubs
Name:  Campagnolo 1034, Record (Low Flange)
Brand:  Campagnolo
Primary Group:  Nuovo Record
Model:  1034
Years:  1967 - 1980's
Country:  Italy
Weight:  518.5 grams (avg)
View Weight List
Added By: JFischer on 07/26/07
Updated By: MGTS on 01/18/16
Additional Photos - click for full size
Campagnolo 1034, Record (Low Flange)Campagnolo 1034, Record (Low Flange)Campagnolo 1034, Record (Low Flange)Campagnolo 1034, Record (Low Flange)Campagnolo 1034, Record (Low Flange)Campagnolo 1034, Record (Low Flange)Campagnolo 1034, Record (Low Flange)Campagnolo 1034, Record (Low Flange)
Gear Compatibility FreewheelFront Bearing Size/Count7/32" / 9x9
Rear Bearing Size/Count1/4" / 9x9Rear Spacing120mm; 126mm
Spoke Drilling24; 28; 32; 36; 40Flange SizeLow Flange
Gear Threading/Pattern English/ISO: 1.375 x 24 TPI;
French: 1.366" x 25.4 tpi;
Italian: 1.378" x 24 tpi
Body MarkingsCampagnolo globe logo Record
Axle MaterialSteelShell MaterialAluminum
General Information
Pre-CSPC quick release levers were straight, after 1978 they became curved.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 5)BrandGroup
Campagnolo 50th AnniversaryCampagnolo50th Anniversary
Campagnolo 1035, Record (high flange)CampagnoloNuovo Record
Campagnolo 4011, Super Record (High Flange, Ti Spindle)CampagnoloSuper Record
Campagnolo 4014, Super Record (Low Flange, Ti Spindle)CampagnoloSuper Record
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Nuovo RecordCampagnolo1966 - 1987, Road RaceView 48 Components
Details:  Production ended in 1987.
User Comments
Sign-in Required
  Loading Comments


By pressing Verify below, you express verification that the photos shown are indeed of the component listed. Please do not verify if you are not sure that all photos are of the correct item. If you identify a photo that is NOT of the correct item, please use the Report feature to flag that photo.

Note: You can not verify photos that you have uploaded.
WeightSourceNotesAdded By
500 GramsUnknown JFischer
537 GramsActual stedeu
