| Category: | Hubs |

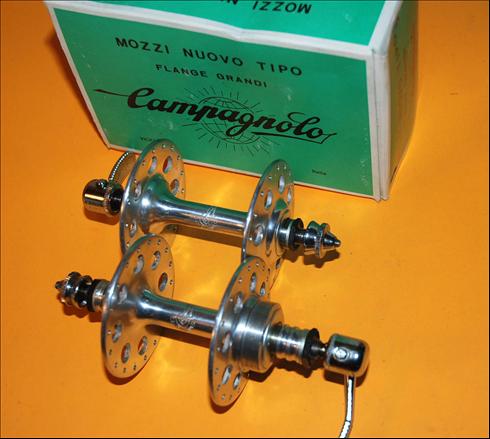

| Name: | Campagnolo 1253, Nuovo Tipo (large flange, round holes) |
| Brand: | Campagnolo |
| Primary Group: | (Nuovo) Gran Sport |
| Model: | 1253 |
| Years: | 1967 - 1981 |
| Country: | Italy |
| Added By: | Kommisar89 on 11/30/07 |
| Updated By: | peterbman on 01/21/16 |
Additional Photos - click for full size |
|
|
Gear Compatibility  | Freewheel | Front Bearing Size/Count | 3/16" 10 x 10 |
| Rear Bearing Size/Count | 1/4" / 9x9 | Rear Spacing | 120mm |
| Spoke Drilling | 24; 28; 32; 36; 40 | Flange Size | High Flange |
| Gear Threading/Pattern | English/ISO: 1.375 x 24 TPI;
Italian: 1.378" x 24 tpi | Body Markings | Winged shield, "Campagnolo" script |
| Axle Material | Steel | Shell Material | Aluminum |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 2) | Brand | Group |
| Campagnolo 1252, Nuovo Tipo (large flange, round holes, solid axles) | Campagnolo | (Nuovo) Gran Sport |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| (Nuovo) Gran Sport (1974-198X) | Campagnolo | 1974 - , Sport & Recreation | View 20 Components |
Details: The reintroduction of the "Gran Sport" name in the mid 70's found the
group situated below the "Record" groups in the Campagnolo line up.
This
group was eventually phased out in the early to mid 80's with the
introduction of the Victory and Triomphe groups. According to the
comments in the '85 Campa catalogue e.g. the G.S. crankset (#0304),
the pedals (#3700) and the BB (#3331) - or at least the G.S. axle
(#3332) - were "no more available and replaced by the Victory range..." |
