| Category: | Front Derailleurs |

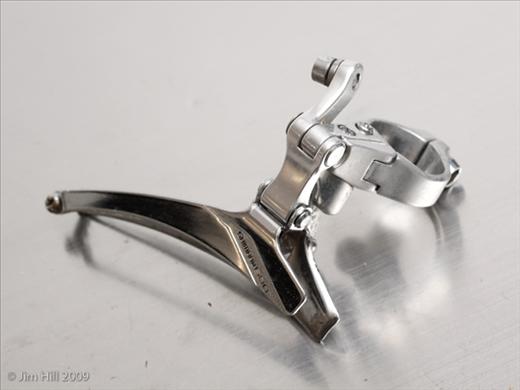

| Name: | Shimano FD-6207, 600EX |
| Brand: | Shimano |
| Primary Group: | 600EX |
| Model: | FD-6207 |
| Years: | 1984 - 1987 |
| Country: | Japan |
| Weight: | 110 grams |
| Added By: | JFischer on 10/15/07 |
| Updated By: | bik3porn on 09/26/15 |
Additional Photos - click for full size |
|
 Verify Component Photos |
|
# Rings Designed For  | Double | Outer Plate Markings | Shimano 600 |
| Inner Plate Markings | Shimano Japan FD-6207 | Clamp Markings | None |
| Inner Clamp Markings | [date code] FD-6207 VIA Shimano Japan | Design Category | Parallelogram |
| Pivot Arm Markings | None | Plate Material | Steel |
| Clamp Style | 28.6mm Clamp; 31.8mm Clamp;
Braze-on Tab | Cable Attachment Bolt | 5mm Allen Key |
| CableStop | No | Clamp Bolt Type | 5mm Allen Key |
| Max Ring Difference | 18T | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| 600EX, 6200 series | Shimano | 1978 - 1987, Road Race | View 49 Components |
| Details: The Shimano 600EX groupset was made in a multitude of variations and generations. Often, more than one variation was being produced at the same time. Included in the Shimano 600EX groupsets is the easily recognizable Arabesque group with detailed engravings and designs. The 600EX group went from friction shifting at its introduction, to 6 speed SIS shifting later in the 1980's. |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
