| Category: | Front Derailleurs |
| Name: | Campagnolo Victory |
| Brand: | Campagnolo |
| Primary Group: | Victory |
| Model: | 0104024 / 0104025 |
| Years: | 1984 - ? |
| Country: | Italy |
| Weight: | 97 grams |
| Added By: | vxpro on 10/02/08 |
| Updated By: | JFischer on 07/27/10 |

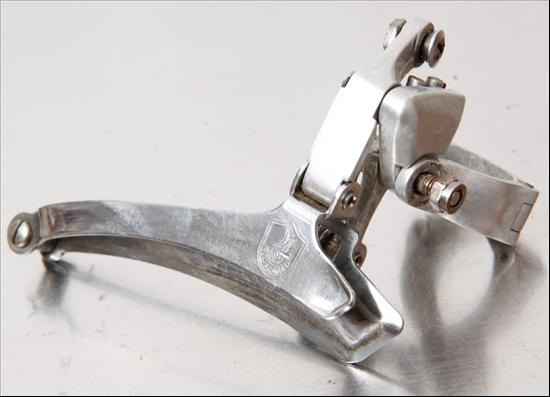

Additional Photos - click for full size |
|
|
# Rings Designed For  | Double | Outer Plate Markings | Campagnolo Shield logo |
| Inner Plate Markings | None | Clamp Markings | None |
| Inner Clamp Markings | None | Design Category | Parallelogram |
| Pivot Arm Markings | None | Plate Material | Chrome plated steel |
| Clamp Style | 28.6mm Clamp; Braze-on Tab | Cable Attachment Bolt | 8mm Wrench |
| CableStop | No | Clamp Bolt Type | 8mm Wrench |
| Max Ring Difference | 11T | | |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Victory | Campagnolo | 1984 - , Road Race/ Pista | View 17 Components |
Details: The Victory group was introduced in 1985, the Triomphe group first appeared in Campagnolo catalogs in 1986.
Both groups were discontinued in the late 1980's and replaced with
Athena and the new wave of Campagnolo mid-range groupsets.
Triomphe and Victory were designed not only as a mid-level component but
also as a legacy design to those that preferred the old Gran Sport / Nuovo Record
(=> Triomphe) and Nuovo Record / Super Record (=> Victory) designs over the new C-Record. |
