Campagnolo Record 1052/1
Back
Report

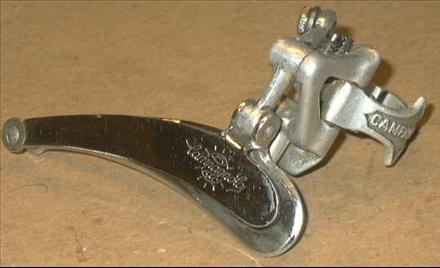

Main Photo
Category:  Front Derailleurs
Name:  Campagnolo Record 1052/1
Brand:  Campagnolo
Primary Group:  Nuovo Record
Model:  1052/1
Years:  1972
Country:  Italy
Weight:  92 grams (Actual)
Added By: JFischer on 07/06/07
Updated By: MGTS on 03/18/16
Additional Photos - click for full size
Campagnolo Record 1052/1Campagnolo Record 1052/1Campagnolo Record 1052/1Campagnolo Record 1052/1
# Rings Designed For DoubleOuter Plate MarkingsCampagnolo World Logo
Inner Plate MarkingsBrev. CampagnoloClamp MarkingsCampagnolo
Inner Clamp MarkingsDesign CategoryParallelogram
Pivot Arm MarkingsNonePlate MaterialSteel
Clamp Style28.6mm ClampCable Attachment Bolt8mm Wrench
CableStop NoClamp Bolt Type8mm Wrench
Max Ring Difference
General Information
Campagnolo Nuovo Record derailleur version from the early 70's.  No lip, no drilling of cage, no C-clip and no cable stop.  Often paired with the Campagnolo Nuovo Record crankset with 52/42 rings or similar.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 6)BrandGroup
Campagnolo Record 0104007 (1978, 4-hole)CampagnoloNuovo Record
Campagnolo Record 1052/1 (1973-1977)CampagnoloNuovo Record
Campagnolo Record 1052/1 (later body with cable stop)CampagnoloNuovo Record
Campagnolo Record 1052/NT (1978 - 1982, 3-hole narrow band)CampagnoloNuovo Record
Campagnolo Nuovo Record 0104007 (1982 - 1987, 3-hole standard band)CampagnoloNuovo Record
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Nuovo RecordCampagnolo1966 - 1987, Road RaceView 48 Components
Details:  Production ended in 1987.
