| Category: | Front Derailleurs |

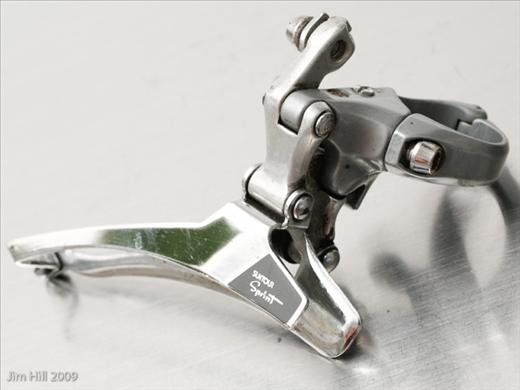

| Name: | SunTour FD-3900-SSH, Sprint |
| Brand: | SunTour |
| Primary Group: | Sprint |
| Model: | FD-3900-SSH |
| Years: | 1987 - Early 1990's |
| Country: | Japan |
| Weight: | 97 grams |
| Added By: | JFischer on 10/29/07 |
| Updated By: | JFischer on 06/09/09 |
Additional Photos - click for full size |
|
|
# Rings Designed For  | Double | Outer Plate Markings | SunTour Sprint |
| Inner Plate Markings | Maeda Ind. Japan, VIA, BL | Clamp Markings | None |
| Inner Clamp Markings | None | Design Category | Parallelogram |
| Pivot Arm Markings | | Plate Material | Steel |
| Clamp Style | 28.6mm Clamp; Braze-on Tab | Cable Attachment Bolt | 5mm Allen Key |
| CableStop | Optional | Clamp Bolt Type | 5mm Allen Key |
| Max Ring Difference | 16T | | |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Sprint | SunTour | 1987 - 1990, Road Race | View 11 Components |
| Details: Suntour introduced the Sprint gruppo, price between Superbe Pro and Cyclone, to compete with Shimano 600 Ultegra. Suntour Sprint was splendid value, everything looked expensive and the finish was superbe.
Suntour Sprint 9000 (1989) Pure Motion, Total Efficiency The objective is to transmit every ounce of the cyclist's power to the road. Power AccuShift IPC, the super round shield bearing and other fine Suntour parts offer the highest lever function and performance. Be it road racing or triathlon, this advanced gun-metal group proves itself the equal to every challenge. An ensemble of tremendous power and sensitivity - that's the trademark of Sprint. (Suntour Catalogue 1989). |
| Group Name | Brand | Quick Info | Browse Group Components |
| Sprint 9000 | SunTour | 1987 - 1990, Road Race | View 9 Components |
SunTour (Maeda)
SunTour derailleurs have a two-letter date code. On rear derailleurs the code is stamped on the back side of the inner parallel arm. On front derailleurs it is stamped on the back side of the inner cage.
The first letter represents the year. Larry Osborn and I believe O (Oh) is 1972, V is 1979 and A is 1984. As with Shimano, the second letter is the month code, where A is January and L is December.
SunTour Year Code
|
N |
O |
P |
Q |
R |
S |
T |
U |
V |
W |
X |
Y |
Z |
|
1971 |
1972 |
1973 |
1974 |
1975 |
1976 |
1977 |
1978 |
1979 |
1980 |
1981 |
1982 |
1983 |
| |
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
|
|
|
|
1984 |
1985 |
1986 |
1987 |
1988 |
1989 |
1990 |
1991 |
1992 |
|
|
|
|
SunTour Month Code
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
|
Jan |
Feb |
Mar |
Apr |
May |
Jun |
Jul |
Aug |
Sep |
Oct |
Nov |
Dec |
The earliest Suntour derailleur I have found with a code is marked OF. A rear derailleur marked OD (corresponding to April of 72) was reported by Leighton Walter. I have a bike that dates from between 1970 to 1972 that has the original SunTour derailleurs. These derailleurs do not have date codes on them, so I believe the coding started sometime between 1970 and April of 1972.
(source: vintage-trek.com)
