| Category: | Front Derailleurs |

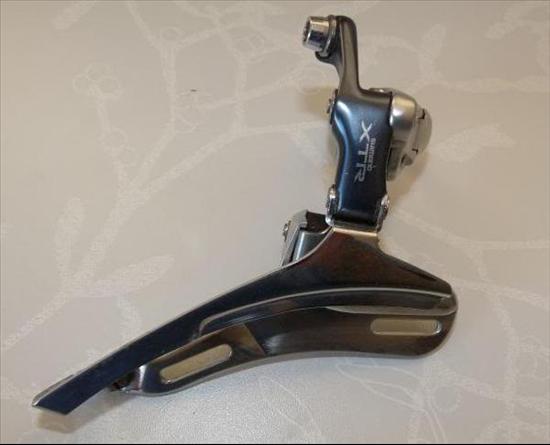

| Name: | Shimano FD-M900, XTR M900 |
| Brand: | Shimano |
| Primary Group: | XTR M900 |
| Model: | FD-M900 |
| Years: | 1992 - 1995 |
| Country: | Japan |
| Added By: | JFischer on 09/20/10 |
| Updated By: | MGTS on 12/09/16 |
Additional Photos - click for full size |
|
 Verify Component Photos |
|
# Rings Designed For  | Triple | Outer Plate Markings | None |
| Inner Plate Markings | VIA Japan Shimano FD-M900 [date code] | Clamp Markings | None |
| Inner Clamp Markings | Clamp Size | Design Category | Parallelogram |
| Pivot Arm Markings | Shimano XTR | Plate Material | |
| Clamp Style | 28.6mm Clamp | Cable Attachment Bolt | 5mm Allen Key |
| CableStop | No | Clamp Bolt Type | 5mm Allen Key |
| Max Ring Difference | 26T | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| XTR M900 | Shimano | 1992 - 1995, Mountain Bike | View 13 Components |
| Details: Designed to be a complete race oriented mountain bike group, the new 8sp SIS compatible XTR series was introduced in 1992. A slight upgrade with M910 series parts was released in 1995 before the group was completely upgrade in 1996 with the introduction of the M950 series. |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
