| Category: | Front Derailleurs |

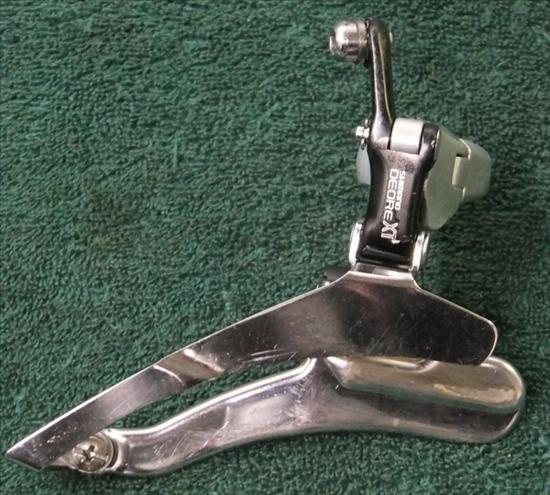

| Name: | Shimano FD-M730, Deore XT |
| Brand: | Shimano |
| Primary Group: | Deore XT M730 |
| Model: | FD-M730 |
| Years: | 1986 - Early 1990's |
| Country: | Japan |
| Added By: | MGTS on 11/22/12 |
| Updated By: | MGTS on 02/01/17 |
Additional Photos - click for full size |
|
|
# Rings Designed For  | Triple | Outer Plate Markings | Shimano Deore XT |
| Inner Plate Markings | FD-M730 Shimano Japan VIA [date code] | Clamp Markings | |
| Inner Clamp Markings | [clamp size] | Design Category | Parallelogram |
| Pivot Arm Markings | | Plate Material | Chrome plated steel |
| Clamp Style | 28.6mm Clamp | Cable Attachment Bolt | 5mm Allen Key |
| CableStop | No | Clamp Bolt Type | 5mm Allen Key |
| Max Ring Difference | | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Deore XT M730 Series | Shimano | 1986 - 1993, Mountain Bike | View 15 Components |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
