Campagnolo 3320, Sport
Back
Report
Main Photo
Category:  Cranksets
Name:  Campagnolo 3320, Sport
Brand:  Campagnolo
Primary Group:  Sport
Model:  3320
Years:  1971 - 1975
Country:  Italy
Added By: JFischer on 07/12/07
Updated By: Wolfram Verktyg on 03/25/19

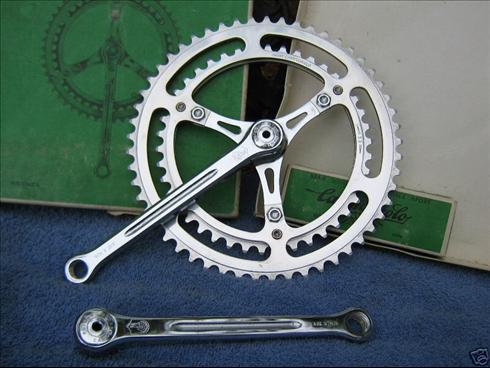

Additional Photos - click for full size
Campagnolo 3320, SportCampagnolo 3320, SportCampagnolo 3320, Sport
Chainring CountDoubleBCD 116mm
BB StyleSquare Taper (ISO)Pedal Threads9/16" x 20 (English)
BB Length 112mm Br, Fr, 113mm ItFlutes Crank Arm
Lengths 170Arm/Spider MaterialSteel
Front MarkingsCampagnolo Winged ShieldBack Markings
Extractor Threading 22x1mm (Standard)
General Information
This Campagnolo crank features a 3-arm spider with cut-outs and a double chain ring arrangement.  The crank arms are chromed steel cotterless and the chainrings are a dual chainring set in alloy.

The chainring sets were available in 42/49, 42/50, 42/51, 42/52, 42/53 43/52 teeth combinations. The chainrings were riveted together and the large chainring bolted to the 116mm BCD spider. The chainring sets for later 3320/A Sport alloy cranks are bolted together.

These first appeared in the 1971 Campagnolo catalog No 16. The 1974 catalog No. 17 shows the 3320/A Sport alloy crank arms but the 1974 "Special" catalog as well as the 1975 catalog No 17a show the 3320 steel crank arms.

Bottom brackets were available in French or British thread with 112mm axle and in Italian thread with a 113mm axle.
Quality:Rarity:
